Ingiant DHS series solid shaft capsulated slip rings diameter 70mm 52channels

Short Description:

DHS series solid shaft slip ring is a compact power transmission device position to realize signal and current transmission between two relatively rotating mechanisms.It adopts beam brush type multi-point contact to ensure reliability under extremely low friction.touch. Can be customized according to customer needs. Current from 2 amps to 2000.Ampere options are available, which can fully meet your different transmission plans.




Product Detail

Product Tags

DHS070-52

The main parameters

Number of circuits

52

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

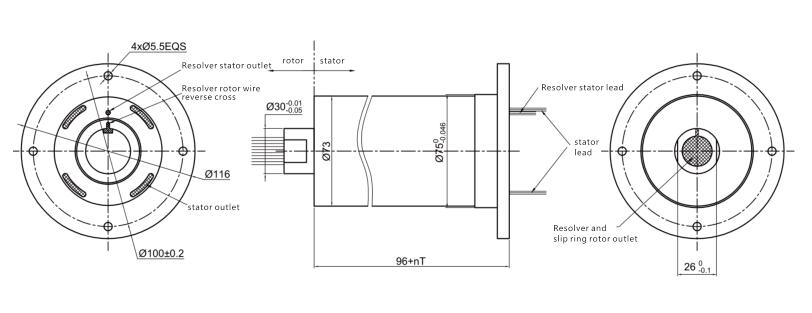

Product drawing:

DHS075-35

DHS series solid shaft slip ring is a compact power transmission device position to realize signal and current transmission between two relatively rotating mechanisms.It adopts beam brush type multi-point contact to ensure reliability under extremely low friction.touch. Can be customized according to customer needs. Current from 2 amps to 2000.Ampere options are available, which can fully meet your different transmission plans

Feature:

  • Transmitting analog and data signals
  • Compatible with data bus protocol
  • Long life and maintenance-free
  • Easy to install
  • 360° continuous rotation transmits power and data signals

QQ图片20230322163852

Our advantage:

  1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
  2. Company advantage:  Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
  3. Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

QQ截图20230322163935
