Ingiant DHS025 series standard high-end precision solid shaft slip ring with flange

Short Description:

DHS solid shaft slip ring with flange is a compact power transmission device that realizes signal and current transmission between two relatively rotating mechanisms. It adopts beam brush type multi-point contact to ensure reliable contact under extremely low friction. It is customized according to customer needs. The current is optional from 2 amps to 2000 amps, which can fully meet your different transmission solutions.


Product Detail

Product Tags

DHS025-48

The main parameters

Number of circuits

48

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

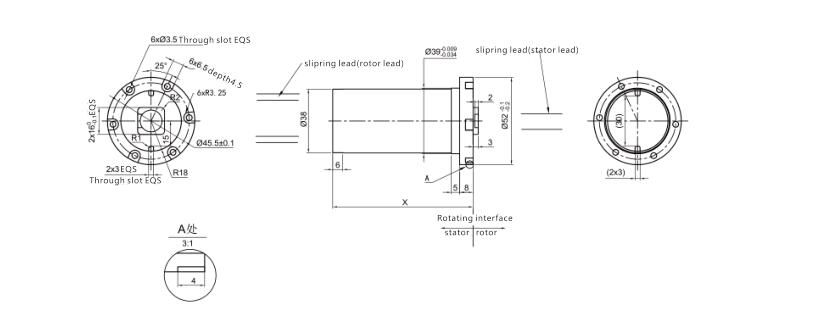

Standard product outline drawing:

DHS039-23-004

         DHS solid shaft slip ring with flange is a compact power transmission device that realizes signal and current transmission between two relatively rotating mechanisms. It adopts beam brush type multi-point contact to ensure reliable contact under extremely low friction. It is customized according to customer needs. The current is optional from 2 amps to 2000 amps, which can fully meet your different transmission solutions.

Features:

  • Transmit analog and digital signals
  • Compatible with data bus protocols
  • Extra long life, maintenance-free
  • Easy to install
  • 360°continuous rotation transmits power and data signals

Typical application:

  • Military equipment
  • medical equipment
  • Exhibition and display equipment
  • Manufacturing and control equipment
  • Engineering machinery, testing equipment, packaging machinery, etc.
