Ingiant DHS056-50-1F series photoelectric slip ring 1 channel optical fiber + electric hybrid slip ring

Short Description:

DHS056-50-1F series photoelectric slip ring 1 channel optical fiber + electric hybrid slip ring
1 optical fiber (supports single-mode/multi-mode), can transmit 1 optical fiber and 1~50 electrical signal paths at the same time, suitable for 360-degree unrestricted, continuous or intermittent rotation, and at the same time need to rotate from a fixed position to Locations where large-capacity data and signals are transmitted can improve mechanical performance, simplify system operation, and avoid damage to optical fibers due to the rotation of movable joints.




Product Detail

Product Tags

DHS056-50-1F

The main parameters

Number of circuits

50

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

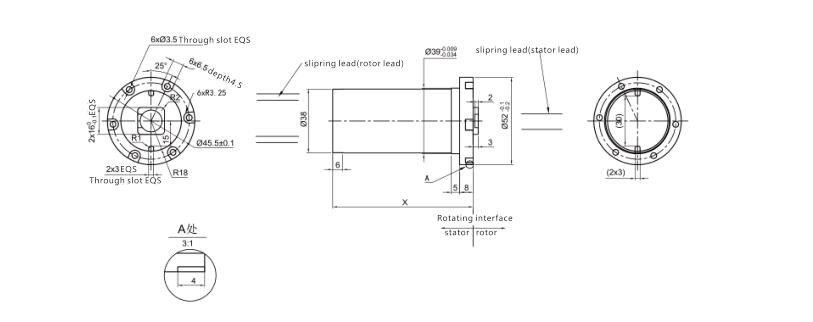

Product drawing:

DHS039-23-004

DHS056-50-1F series photoelectric slip ring 1 channel optical fiber + electric hybrid slip ring


      1 optical fiber (supports single-mode/multi-mode), can transmit 1 optical fiber and 1~50 electrical signal paths at the same time, suitable for 360-degree unrestricted, continuous or intermittent rotation, and at the same time need to rotate from a fixed position to Locations where large-capacity data and signals are transmitted can improve mechanical performance, simplify system operation, and avoid damage to optical fibers due to the rotation of movable joints.



Features

  • Can transmit single or multiple optical fiber signals, multi-channel rotation;
  • Optical fiber connectors can be selected from FC, SC, ST, SMA or LC (PC and APC), etc., which can hybridly transmit power supply, control signals, micro power signals required for instrumentation and computer automatic control;
  • It can be used with traditional electric slip rings to form photoelectric hybrid bus rings to transmit power and high-speed data;
  • No contact, no friction, long life, up to 100 million revolutions (more than 200-300 million revolutions for a single core);
  • Safe and reliable, no leakage, no electromagnetic interference, and can be transmitted over long distances;

QQ图片20230322163852

Our advantage:

  1. Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
  2. Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
  3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.

QQ截图20230322163935
