Ingiant Dual Channel Coaxial Rotary Joint

Short Description:


Product Detail

Product Tags

Product Description

Ingiant standard dual channel coaxial rotary joint is designed for use in military and SatCom applications. Being technically superior we offer combinations up to 50GHz. Therefore, many applications can benefit of this compact size and light weight install to airborne, land and marine applications. We distinguish basically between contacting and non-contacting designs.

Feature

Specially designed for radio frequency signal transmission, the highest frequency can reach 40GHz
Coaxial contact design makes the connector no cut-off frequency and have an ultra-wide bandwidth
Multi-contact structure, effectively reducing relative jitter
The overall size is small, the connector is plugged and used, and it is easy to install

Can Be Customized Specifications

Rated current and voltage
Rated rotating speed
Operating temperature
Number of Channels
Housing material and color
Dimensions
Dedicated wire
Wire exit direction
Wire length
Terminal type

Typical Applications

Suitable for military and civilian vehicles, radar, microwave wireless rotating platforms

Main parameters

Channels Can be customized
Working frequency DC~can be customized
Working temperature -40°C~+70°C or others
Maximum rotating speed 0~200rpm or higher
Insertion loss <1dB (There will be gaps in data in different frequency bands)
Insertion loss variation <0.5dB (There will be gaps in data of different frequency bands)
Standing wave ratio 1.2 (There will be gaps in data of different frequency bands)
Standing wave change 0.2 (There will be gaps in data of different frequency bands)
Structure material Aluminum alloy

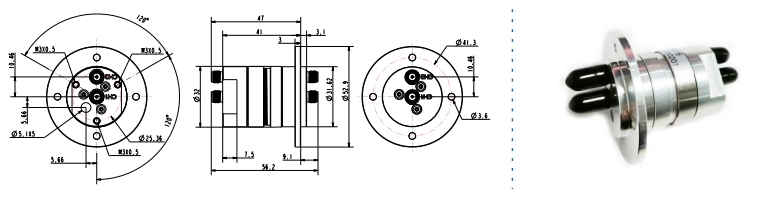

HS-2RJ-001

product-description1

Technical parameters

Channels Channel 1 Channel 2
Interface type SMA-f(50Ω) SMA-f(50Ω)
Frequency range DC~4.5GHz DC-4.5GHz
Average power 50W 10W
Maximum standing wave ratio 1.3 1.6
Standing wave ratio fluctuation value 0.05 0.1
Insertion loss 0.3dB 0.5dB
Insertion loss variation 0.05dB 0.1dB
Isolation 50dB 50dB

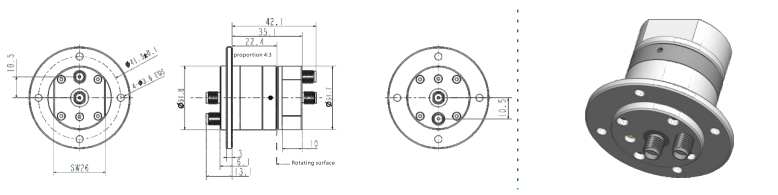

HS-2RJ-002

product-description2

Technical parameters

Channels Channel 1 Channel 2
Interface type SMA-f(50Ω) SMA-f(50Ω)
Frequency range DC~4.5GHz DC-4.5GHz
Average power 100W 10W
Maximum standing wave ratio 1.2 1.5
Standing wave ratio fluctuation value 0.05 0.2
Insertion loss 0.25dB 0.3dB
Insertion loss variation 0.05dB 0.15dB
Isolation 50dB 50dB
product-description3
product-description4
