Ingiant Ethernet slip ring transmitting 1 Gigabit Ethernet signal and 28 channels power rings (2-20A)

Short Description:

Ethernet slip ring – DHS066 series

Accept customization, transmit 100/1000M Ethernet signal

DHS066-37 Ethernet slip ring is specially designed for 250MHZ signal transmission. It can be combined with 28 power rings (2-20A) while transmitting 1 Gigabit Ethernet signal, and can be customized according to actual needs. Ethernet slip rings are made of reliable precious metal materials and aluminum shell. The mature and stable process makes the produced slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.

Send email to us

Product Detail

Product Tags

DHS066-37
The main parameters
Number of circuits	37	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

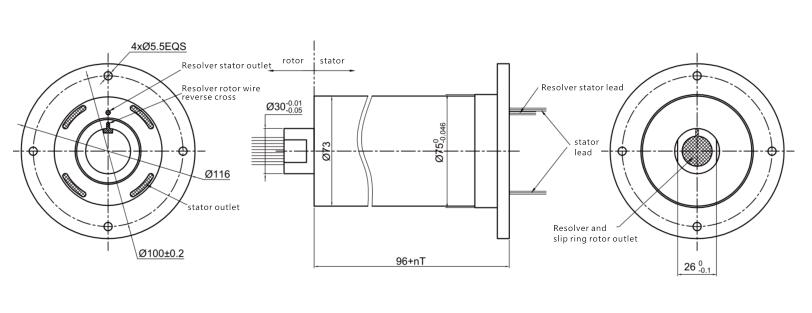

Standard product outline drawing:

Ethernet slip ring – DHS066 series
Accept customization, transmit 100/1000M Ethernet signal
DHS066-37 Ethernet slip ring is specially designed for 250MHZ signal transmission. It can be combined with 28 power rings (2-20A) while transmitting 1 Gigabit Ethernet signal, and can be customized according to actual needs. Ethernet slip rings are made of reliable precious metal materials and aluminum shell. The mature and stable process makes the produced slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.

Product features

Stable transmission of 1 Gigabit Ethernet signal
The brush contact part is plated with rare precious metals, which has a long service life
Plug-and-play RJ45 interface
Dedicated Ethernet cable
Small size, easy installation
Maintenance-free use
Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Typical applications

Small network system
Video surveillance system
Stage control system
Industrial automation control
All kinds of network cables and RJ45 interface transmission

Our advantage:

Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
