Ingiant Ethernet slip ring with through hole 45mm 18 channels accept customization

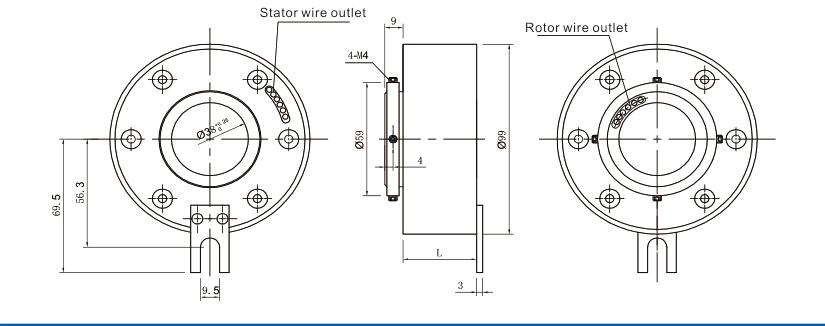

Standard product outline drawing:

Ethernet Slip Ring – Through Hole Slip Ring Series

Accept customization and transmit 100/1000M Ethernet signals

Ethernet slip rings are used to transmit network signals, mainly with 10M, 100M, and 1000M transmission power. It uses a network cable with a crystal connector (RJ45 connector), which is plug-and-play and very convenient.

Ethernet slip ring is a 250Mhz frequency signal, which can integrate electrical, gas, liquid and other functions, and transmit multiple signals and currents at the same time. Stable, no packet loss, no aliasing. The installation method can be adjusted according to the needs of the monitoring equipment, usually in the form of a cap-type slip ring or a through-hole slip ring. CAT Category 5e cable, 100mm oversized hollow shaft, and 2-meter outlet cable length can all be customized and produced.

Features

• It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
• Fiber brush bundle contact structure ensures product life
• Stable transmission of 1-2 channels of Gigabit Ethernet signals
• Integrated structural design for easy installation
• Protection grade IP51-IP68 optional
• Standard models available and customizable
• RJ45 male and female connector optional
• Use high-quality Ethernet cables
• maintenance free

Our Advantage

1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
3. Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
