Ingiant gas-electric hybrid slip ring combination 4 channels 2A and 4 pneumatic channel

Short Description:

4 in and 4 out, 4-way gas/gas-electric hybrid rotary joint, gas-electric hybrid slip ring, with G3/8″

And it can optionally pass through power lines, signal lines, industrial buses, and control lines at the same time.

Solenoid valve, induction line, etc.

Standard is flange mounting type

The media that can pass through are: compressed air, vacuum and other gases


Product Detail

Product Tags

DHS070-4-2A-4Q

The main parameters

Number of circuits

4

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

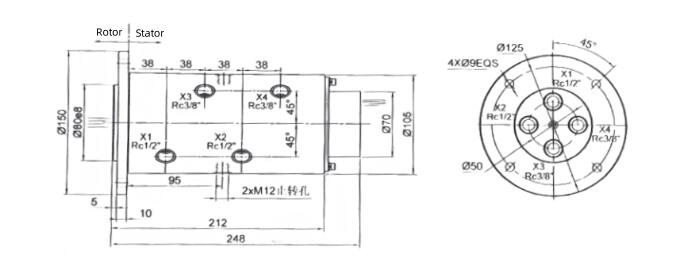

Product drawing:

DHS070-4-2A-4Q

  • 4 in and 4 out, 4-way gas/gas-electric hybrid rotary joint, gas-electric hybrid slip ring, with G3/8″
  • And it can optionally pass through power lines, signal lines, industrial buses, and control lines at the same time.
  • Solenoid valve, induction line, etc.
  • Standard is flange mounting type
  • The media that can pass through are: compressed air, vacuum and other gases

Gas-electric hybrid slip ring is a high-end rotary joint that effectively integrates the functions of a conductive slip ring to transmit electricity, data, signals, Ethernet, and USB, and integrates the advantages of a pneumatic rotary joint to transmit gas, oil, and liquid. The one-piece design of the electric combined slip ring effectively integrates the circuit and the gas circuit into one, reducing the space for the equipment and realizing the simultaneous 360-degree infinite rotation transmission of power medium, fluid medium, and gas medium.
Typical applications:

Automated non-standard equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, coating separator equipment, packaging film equipment for soft pack batteries, bonding equipment, laminating equipment, electronic semiconductors Industrial automation equipment; photoelectric flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, other automated non-standard professional equipment, etc.
