Ingiant Gas-electric hybrid slip ring transmits Ethernet signal diameter 120mm 1 channel pneumatic + power/signal

Short Description:

Gas-electric hybrid slip ring diameter 120mm 1 channel pneumatic + power/ Ethernet signal

Features

When rotating 360°, combined circuit (power/signal) and pneumatic transmission; Compact structure, the circuit can be Ethernet, Ethercat, profibus, profinet, canbus, deviceet and other network cables. Hybrid slip rings can be used in any electromechanical system that needs to transmit natural gas, air, electricity or data during intermittent or continuous rotation.


Product Detail

Product Tags

DHS120-24-1Q-002

The main parameters

Number of circuits

24

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

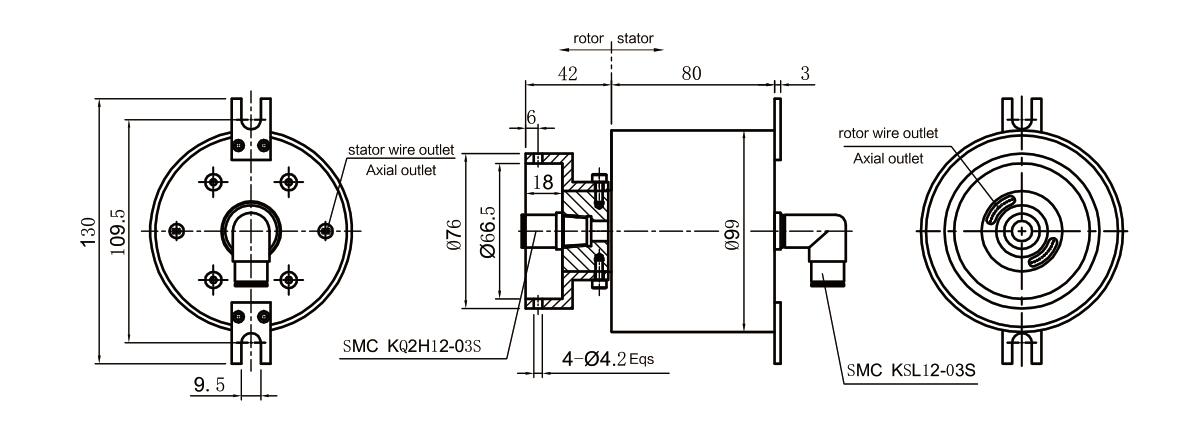

Product drawing:

DHS099-24-1Q

Gas-electric hybrid slip ring diameter 120mm 1 channel pneumatic + power/ Ethernet signal

Features

When rotating 360°, combined circuit (power/signal) and pneumatic transmission; Compact structure, the circuit can be Ethernet, Ethercat, profibus, profinet, canbus, deviceet and other network cables. Hybrid slip rings can be used in any electromechanical system that needs to transmit natural gas, air, electricity or data during intermittent or continuous rotation.



Typical applications

Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment,medical equipment.
