Ingiant Gas electric slip ring 65mm with 1 0.4Mpa gas channel and 28channels power signals
|
DHS065-28-1Q |
|||
|
The main parameters |
|||
|
Number of circuits |
28 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
Gas slip ring parameters:
| Number of channels: | 1channel |
| Flow orifice: | ∅5 |
| Connector air pipe: | ∅6 |
| Media: | Compressed air |
| Maximum pressure: | 0.4Mpa |
| Interface size: | G1/8” |

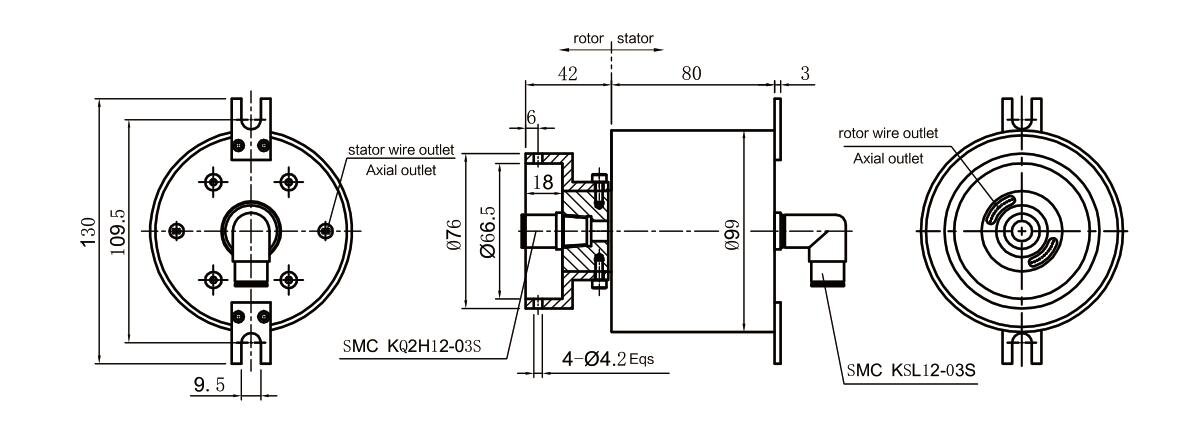

Standard product outline drawing:
DHS065-28-1Q Gas electric slip ring has an outer diameter of 65mm, integrates 4 channels of 5A (Peak value 15A) power ring, 24 channels of signals, 1 channel of 0.4Mpa compressed air, flange installation, 360° rotation to transmit power, signal, and gas, and has a long service life Up to 6000W revolution.
Features:
- 360-degree rotation to transmit gas, power signal and other media at the same time
- Supports 1~128 power lines or signal lines.
- Standard interfaces include G1/8″, G3/8″, etc.
- The size of the gas pipe can be determined according to customer requirements.
- Can transmit compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media.
- Special requirements such as high speed and high pressure can be customized according to requirements.
Typical applications:
Automated non-standard equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel displays, industrial automation equipment, testing equipment, other automated non-standard professional equipment, etc.
Our advantage:
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
