Ingiant Gas-electric slip ring hole diameter 60mm, 4-channel pneumatic rotary joint and 30-channel electrical channel
|
DHK060-30-4Q |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

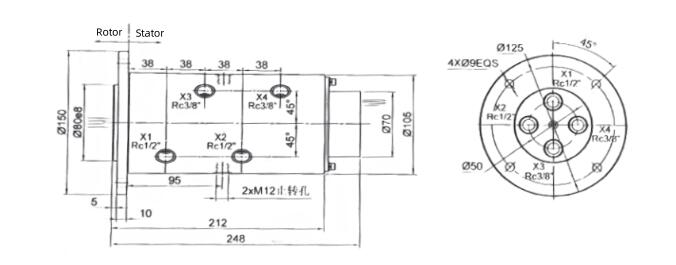

Standard product outline drawing:
Gas-electric slip ring: through hole, 60mm diameter,4 channels pneumatic rotary joint
DHK060-30-4Q gas-electric slip ring, 4-way gas + electric integrated specifications. The gas-electric slip ring can rotate 360 degrees to transmit 4-way gas, including compressed air, vacuum (negative pressure) and other gas media. Supports 6mm and 8mm gas pipes. The 4 gas and electric paths are independent of each other and do not interfere with each other, and will not cause confusion during the rotation process.
Features
- 4 air inlet and 4 air outlet passages;
- Pure pneumatic slip rings can be selected, and mixed power lines, signal lines, Ethernet, encoder lines, control lines, solenoid valves, induction lines, etc. can also be used;
- The standard is through-hole installation, and other installation methods such as flanges can be customized;
- The media that can pass are: compressed air, nitrogen, chemical mixed gases, cooling water, hot water, beverages, etc.
Typical applications: Automatic machines, cable reels, robots, rotary sensors, emergency lighting equipment, exhibition/display equipment, packaging machinery, rotary tables, medical, pharmaceutical equipment, processing machinery, capping machines, labeling machines, filling machines, machine tools
Our Advantage
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
