Ingiant Gigabit Ethernet slip ring out diameter 48mm with 1 channel Gigabit Ethernet signal and 4 channels power
|
DHS048-13 |
|||
|
The main parameters |
|||
|
Number of circuits |
13 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

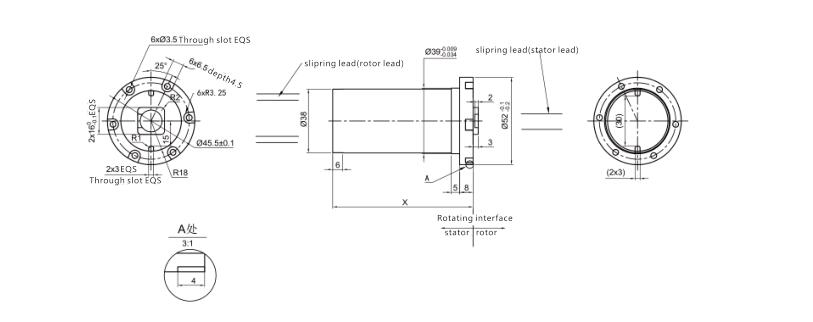

Standard product outline drawing:
Ethernet slip ring Gigabit Ethernet slip ring series
DHS048-13 Gigabit Ethernet slip ring series has an outer diameter of 48mm, transmits 1 channel Gigabit Ethernet signal, cooperates with 4 power rings (20A), uses fiber brush material, reliable transmission, no packet loss, no string code, small return loss, small insertion loss, can be customized according to actual needs.
Features
- Multi-point brush contact material ensure long life
- Stable transmit 1 channels Gigabit Ethernet signal
- Integrated structure design for easy installation
- Standard model and customization are available
- IP 51 (IP54-IP68 can be customized)
- With RJ45 male connectors, RJ45 female optional
- Ethernet cable connection
- With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss, etc.
- Free maintenance
Typical application
- Automatic machines
- Cable reels
- Robotics, rotary sensors, urgent illumination equipment
- Exhibit / display equipment
- Packaging
- Rotary table
- Medical, Pharmaceutical equipment
- Converting machines
- Capping machines
- Labeling machines
- Filling machine
- Machine tools
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
