Ingiant Gigabit Ethernet slip ring outer diameter 32mm with 1 channel Gigabit Ethernet signal

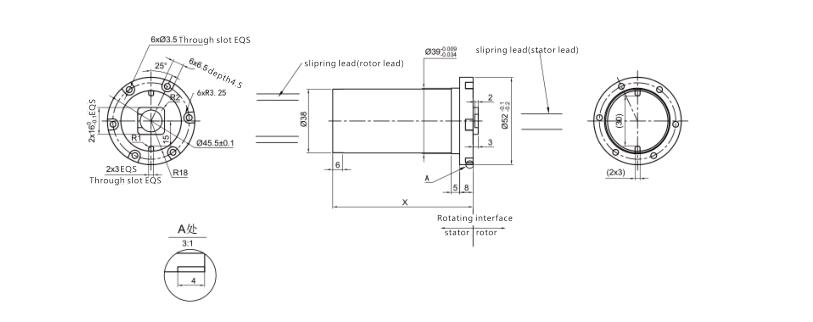

Standard product outline drawing:

Ethernet slip ring – DHS series

Accept customization, transmit 100/1000M Ethernet signal

Ethernet slip ring DHS032-21 series, outer diameter 25mm, can integrate transmission of 20A、8A current/2A signal/1000M Ethernet signal. Plug and play type with RJ45 connector. Gigabit Ethernet slip rings can be used in wind turbines, industrial robots, radar antennas, etc.

Ethernet slip rings transmit power and Ethernet signals from a fixed structure to a rotating structure through the contact between precious metal rings and brush wires. This type of signal slip ring can transmit power and signals, as well as multi-channel low-frequency signals and currents.

Product features

• It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss
• The fiber brush contact structure ensures the product life
• Stable transmission of 1 Gigabit Ethernet signal
• Integrated structure design, easy to install
• Protection level IP51-IP68 optional
• Standard models are available and can be customized
• RJ45 male and female connectors are optional
• Use high-quality Ethernet cable
• Maintenance-free

Typical applications

• Small network system
• Video surveillance system
• Stage control system
• Industrial automation control
• Various network cables and RJ45 interface transmission

Our advantage:

1）Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.

2）Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

3）Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
