Ingiant Gigabit Ethernet slip ring transmission 1 channel 1000M Ethernet signal and 33channels signals

Short Description:

Ethernet slip ring -DHS040 Gigabit network slip ring series

Accept customization and transmit 100/1000M Ethernet signals

Gigabit Ethernet slip ring DHS040-54-007 series, outer diameter 40mm, integrated transmission of 12 channels of 5A current/33 channels of signals/1 channel of 1000M Ethernet signal. Plug and play type with RJ45 connector, also called network slip ring, network cable slip ring.

Send email to us

Product Detail

Product Tags

DHS040-54-007
The main parameters
Number of circuits	54	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

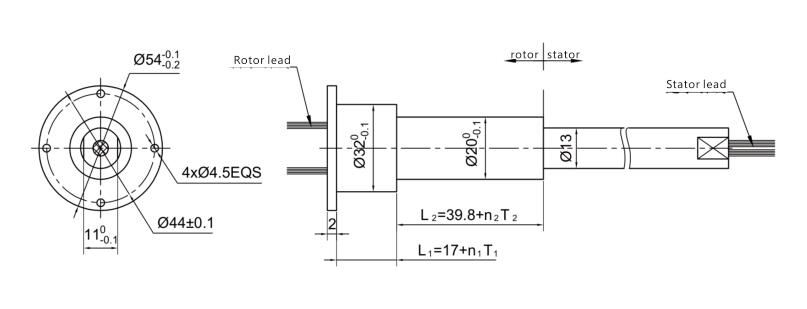

Standard product outline drawing:

Ethernet slip ring -DHS040 Gigabit network slip ring series

Accept customization and transmit 100/1000M Ethernet signals

Features

It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
Fiber brush bundle contact structure ensures product life
Stable transmission of 1 Gigabit Ethernet signal
Integrated structural design for easy installation
Protection grade IP51-IP68 optional
Standard models available and customizable
RJ45 male and female connector optional
Use high-quality Ethernet cables
Maintenance free

Typical applications

Small Network System
Video Surveillance System
Stage Control System
Industrial Automation Control
Various network cables and RJ45 interface transmission

Our advantage:

1：Product advantage: Ingiant Ethernet slip rings are made of reliable precious metal materials and aluminum housings. Mature and stable technology enables the production of slip rings with remarkable features such as stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.

2：Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.

3：INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
