Ingiant High current slip ring hole diameter 60mm with 5 channels 260A power binding post connection

Short Description:

High current slip ring – DHK through hole slip ring series
Maximum custom current 1000A, custom voltage 6000V
DHK060-5-260A high current slip ring is designed to pass high power and high current, with a maximum current of 7500A. It uses contacts with extremely low contact resistance and low heat generation. The ultra-high current housing is designed with aluminum alloy, which has fast heat dissipation and a large number of heat dissipation holes. Each unit has temperature rise test and high current impact test before leaving the factory.

Send email to us

Product Detail

Product Tags

DHK060-5-260A
The main parameters
Number of circuits	5	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

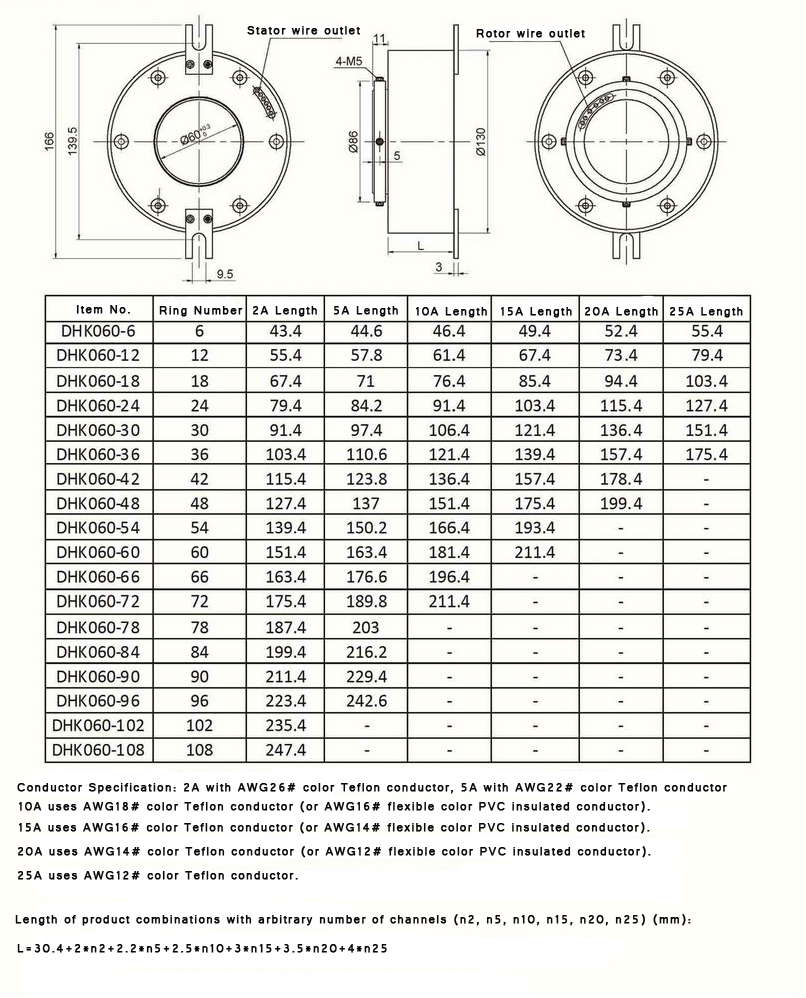

Standard product outline drawing:

Features:

It can pass 30A, 60A, 100A, 260A and even customized products up to 7500A
Support 500W, 1000W, 2000W and higher power equipment.
Special level technical gold plating treatment. Extremely low contact resistance and low heat generation.
Shaft installation or flange installation optional.
Optional outgoing lines or terminal posts

Typical applications

Large crane
Maritime equipment
Port terminal machinery
offshore drilling platform
High power heating equipment

Our Advantage

1） Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
2） Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
3） Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
