Ingiant High current slip ring with through hole 25m transmission 800A power supply

Short Description:

Product Detail

Product Tags

DHK025-5-800A
The main parameters
Number of circuits	5	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

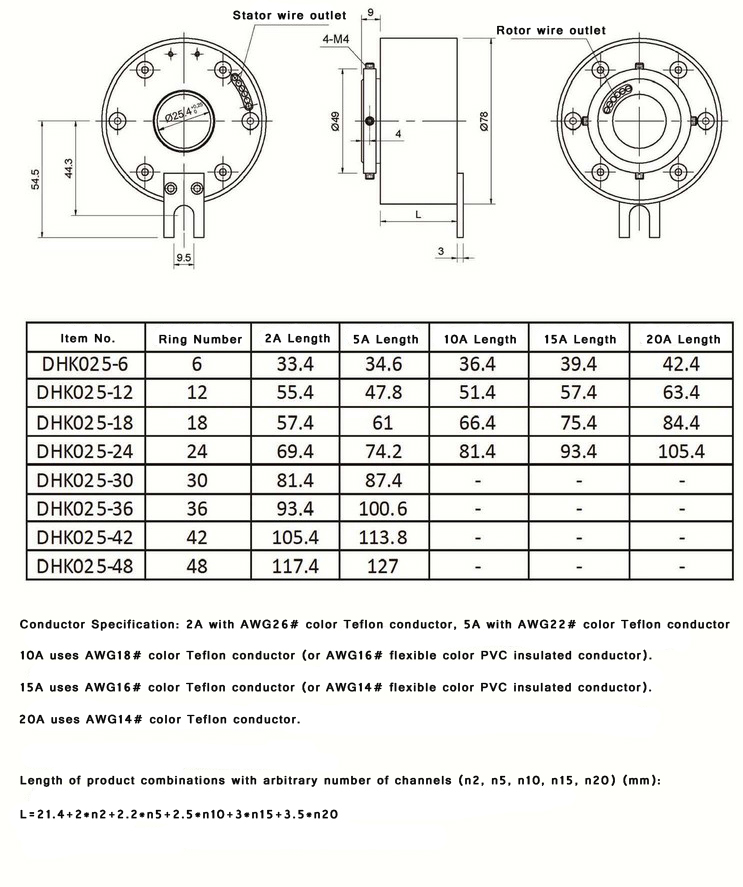

Standard product outline drawing:

High current slip rings – through hole slip rings
Customizable, up to 1000A
DHK025-5-800A high current slip ring is a through hole slip ring with a hole diameter of 25mm, 5 channels and 800A current. The insulation material used has excellent heat resistance, corrosion resistance and fatigue resistance. High current can be customized as per actual demand.

Product features

Low contact resistance, low friction heat generation, long life
Bundle fiber brush process, gold-to-gold contact
Maximum design current 1000A
Aluminum alloy shell, easy installation

Typical applications

Automatic machines
Oil drilling
Port machinery
Large communication equipment
Large processing center
Antenna radar system
Large crane
Mining machinery
Large cable drum

Our Advantage

Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
