Ingiant high current slip ring with through hole 65mm and 4 channels total 520A binding post connections

Short Description:

Product Detail

Product Tags

DHK065-4
The main parameters
Number of circuits	4	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

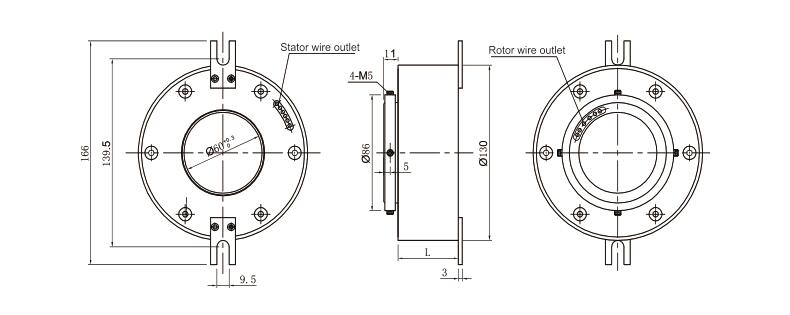

Standard product outline drawing:

High Current Slip Rings/High Voltage Slip Rings

Available for Custom, Max. 1000A, Max. 6000V

DHK065-4 High Current Slip Rings has a through hole of 65mm and is suitable for rotary applications with a through hole ≤ 65mm. The rotor and stator are connected by binding posts, which are often used in applications above 100A. Sensor signals or thermocouple signals can be added according to customer requirements. The product uses imported materials, has low contact resistance and small temperature rise, and can meet high-level reliability requirements.

Features

Integrated structure design for easy installation
70A, 150A or higher current are available
Various sizes with internal or external thread installation
IP 51 (IP54-IP68 can be customized)
Signals combination with high current is available

High current slip rings and high voltage slip rings are used for communication devices, large machining centers, antenna radar systems, large cranes, mining machines, and large cable reels. High voltage sometimes requires more than 2,000 volts and high current sometimes requires 500 amperes.

Our Advantage

Product advantage: Hollow shaft slip rings are an excellent solution for mounting on an axle or for cable feed-through due to their open interior. They can be used to supply power and data to a wide variety of applications. Among them are, for example, rotary switches, servo motors, control valves or wheel hub motors.
Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Customized advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
