Ingiant High frequency slip ring 105mm with 2 channel high frequency rotary joint and 76 channels electric signal

Short Description:

High frequency slip ring Dual-channel high-frequency rotary joint

DHS105-76-2S high frequency slip ring is a dual-channel high-frequency rotary joint with a frequency range of DC-0.1GHz to 18GHz. The connector type uses SMA-f female connector. It combines 76 electric slip ring channels and is a product specially developed to meet the needs of high-speed serial digital signal or analog signal transmission (and needs to transmit 1 to 76 currents).

Send email to us

Product Detail

Product Tags

DHS105-76-2S
The main parameters
Number of circuits	76	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

HS-2RJ-002 Main technical parameters of dual-channel high frequency rotary joint：

Channel:	CH1	CH2
Interface type:	SMA-f female head (50 Ω) (outer screw inner hole)	SMA-f female head (50 Ω) (outer screw inner hole)
Category:	Ⅰtype	Ⅰtype
Frequency range:	6-18GHz	DC-0.1GHz
Average power:	60W@2-8GHz/10W@8-18GHz	10W
Maximum standing wave ratio:	1.5	1.5
Standing wave ratio fluctuation value:	0.1	0.1
Insertion loss:	<1dB	<1dB
Insertion loss variation:	<0.1dB	<0.1dB
Structural material: Main body aluminum alloy, SMA-f female head made of 316L stainless steel ☆
Wiring: RG316 coaxial cable;
Enduring power: 30dBm;

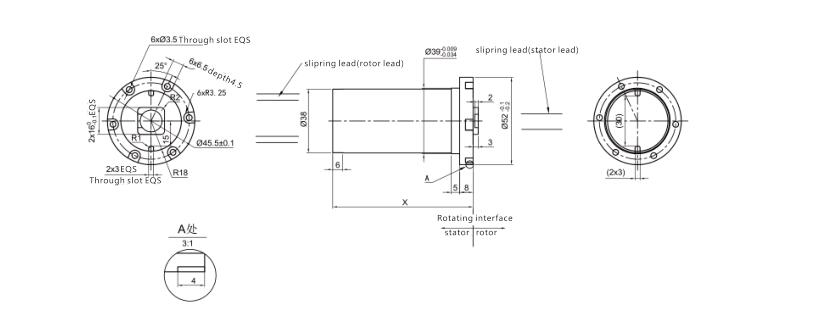

Standard product outline drawing:

High frequency slip ring Dual-channel high-frequency rotary joint

Product features

Coaxial RF channel: 2 channels, electric slip ring channel: 1~76 channels;
Transmission frequency range: DC-6GHz~18GHz+DC~0.1GHz;
Excellent insertion loss and voltage standing wave ratio;
360-degree rotation conduction and stable transmission of coaxial RF signals;
Integrated structure design, easy installation;

Applicable to vehicle-mounted PTZ, ship-mounted PTZ, radar, pod, microwave antenna test bench;

Our advantage:

Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
