Ingiant high precision through hole slip ring 16 channel for various radar
Ingiant through hole slip ring for automation machines
|

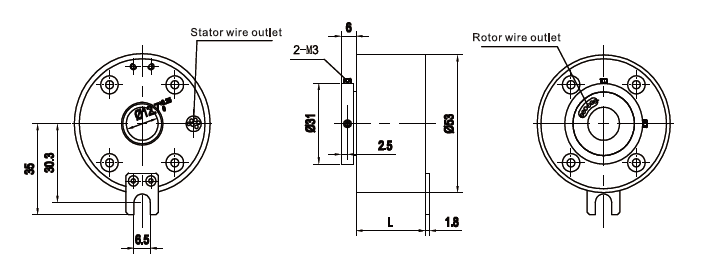

DHK060-16-3Q |
|||
|
The main parameters |
|||
|
Number of circuits |
16 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Through-hole conductive slip ring is a series of conductive slip rings with holes in the center of the general name, mainly used for transmission of precision signals, weak current, large current, high voltage; 360° continuous rotation, continuous transmission of power and signals; Application of advanced fiber brush technology, free repair or lubrication; Multiple contact points on each circuit, low contact pressure, low noise, low contact wear; Extremely long working life; Standardized & modular design; It also offers customized solutions;
DHK series perforated conductive slip ring is currently the most cost-effective industrial slip ring inside a best-selling series of products, in many cases also known as hollow shaft conductive slip ring, through the hole, through the hole conductive slip ring, hollow shaft slip ring. Mainly used in 360 degrees continuous rotation and need to ensure that the power supply, signal can not be interrupted: Such as all kinds of radar, security equipment, entertainment equipment, all kinds of robots, manipulators, all kinds of aerosols, all kinds of wind power generation equipment, bottle blowing machine, light inspection machine, all kinds of turntables, entertainment equipment, virtual 3D, VR equipment, vehicle satellite antenna, ship-borne satellite wire, cable reel, window cleaning machine equipment, rotating table, rotating stage, rotating screen, rotating restaurant, Electric engineering machinery, the latest VR simulation equipment.Factory scene:
