Ingiant high-quality capsulated slip ring 22mm 28 channels 2A for turntables
|
DHS022-28-2A |
|||
|
The main parameters |
|||
|
Number of circuits |
28 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

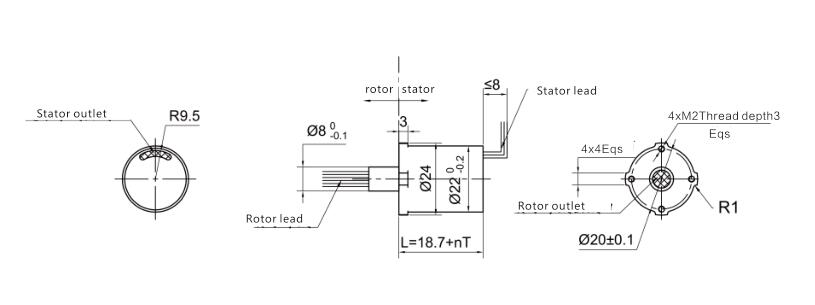

Product drawing:
Capsulated Slip Rings for Power- and Signal Transmission
Compact Slip Rings with outer diameter from 5.5mm to 54mm
High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements
Capsulated slip rings look like hats, are compact in design, small in size and easy to install.
- The product adopts American military surface treatment technology and super-hard gold plating to ensure extremely low resistance fluctuation and long working life.
- Mainly used to transmit weak control signals and weak currents in small and medium-sized systems. Such as video, control, sensing, power, Ethernet.
- With low torque, low loss and maintenance-free; low electrical noise
Typical applications: drones, stabilizers, smart homes, security monitoring, photography, robots, test instruments, turntables and automation equipment
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
