Ingiant hole diameter 50mm through hole high current conductive slip ring 5 channles 5 channels with 200A each
|
DHK050-5-200A |
|||
|
The main parameters |
|||
|
Number of circuits |
5 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
200A/channel |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

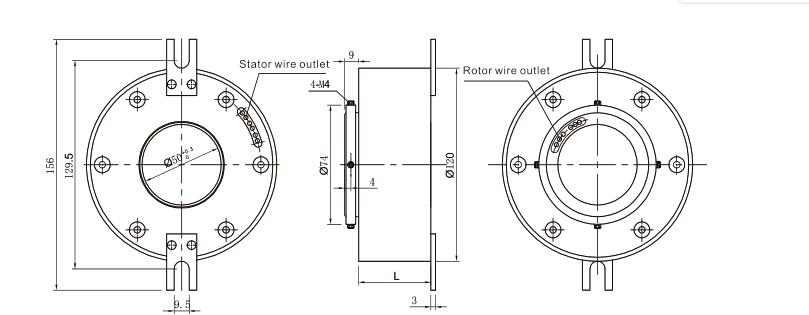

Standard product outline drawing:
High current conductive slip ring, high-power conductive slip ring DHK050-5-200A
DHK050-5-200A high current conductive slip ring is designed specifically for transmitting 5 channels of 200A high current each. The installation method, wire specifications, and outlet form can be customized according to needs. The insulation material used in high current conductive slip rings has excellent heat resistance, corrosion resistance, and fatigue resistance. When designing mechanical structures, both the characteristics of high current and electrical insulation, installation and maintenance should be considered.
Product features
- Low contact resistance, low friction heat generation, and long service life
- Bundle type fiber brush technology, gold to gold contact
- Maximum design voltage 6000V
- Maximum design current 1000A
- Aluminum alloy shell, easy to install
Typical applications: Large equipment, such as large communication equipment, large machining centers, antenna radar systems, large cranes, mining machinery, large cable reels, etc.
Our Advantage
1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers, our factory covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirement.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
