Ingiant Hole diameter 80mm high precision hollow shaft waterproof slip ring 1 channel 10A

Short Description:

DHK080F series waterproof slip ring, through hole diameter 80mm (applicable to any <=80mm), number of channels: 1, integral precision conductive slip ring with all stainless steel structure. Supports signal, communication, or power supply current of 10A-30A, voltage 380VAC/24VDC. High rotation accuracy, more stable performance and longer life. The contact material is made of precious metal + super-hard gold plating. It has small torque, stable operation, long life, small resistance fluctuation and small contact resistance, ensuring excellent transmission performance.


Product Detail

Product Tags

DHK080F-1-10A

The main parameters

Number of circuits

1

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

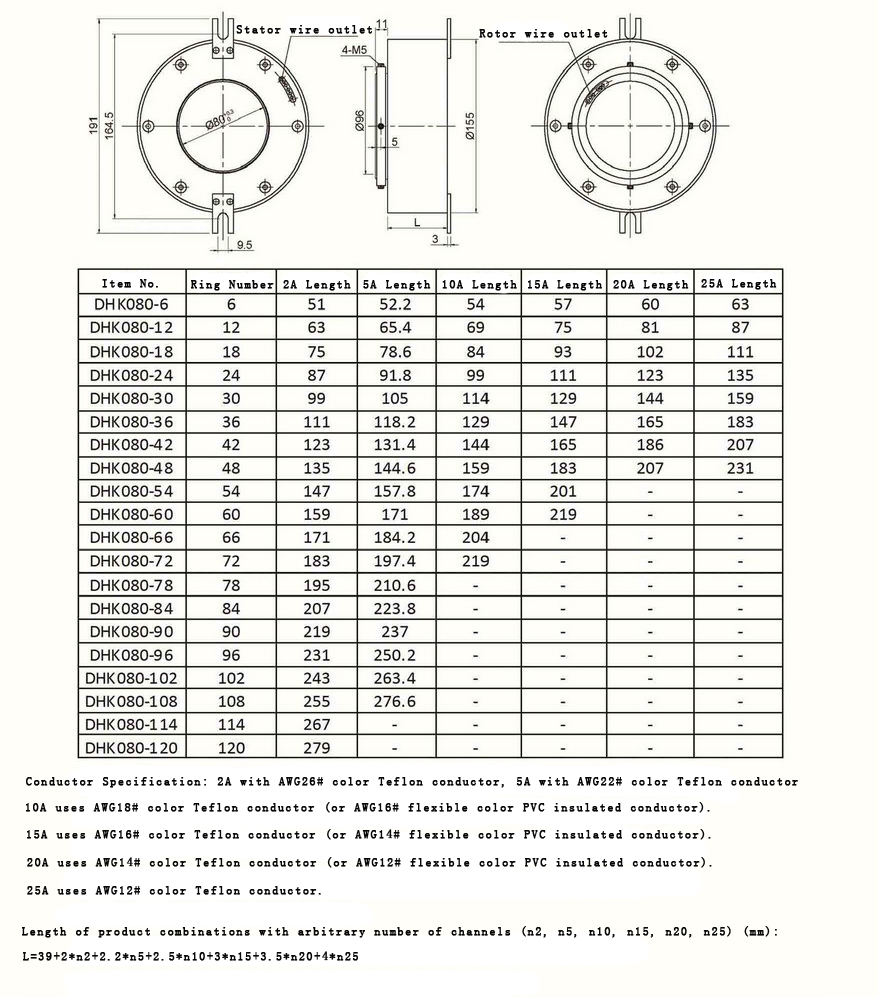

Standard product outline drawing:

DHK080

        DHK080F series waterproof slip ring, through hole diameter 80mm (applicable to any <=80mm), number of channels: 1, integral precision conductive slip ring with all stainless steel structure. Supports signal, communication, or power supply current of 10A-30A, voltage 380VAC/24VDC. High rotation accuracy, more stable performance and longer life. The contact material is made of precious metal + super-hard gold plating. It has small torque, stable operation, long life, small resistance fluctuation and small contact resistance, ensuring excellent transmission performance.

Features:

  • ·Unique contact design provides longer life and maintenance-free stable operation
  •  ·Modular design to meet the needs of higher current, speed, appearance, etc.
  •  ·Diversified appearance to support more installation requirements
  •  ·Supports signal, power and mixed transmission
  •  ·Can support 1-126 channel expansion
  •  ·Can meet the requirements widely used in current industrial fields



Application areas

  •  1.Industrial machines:Drilling platform, winding machine, end face processing machine, hot rolling machine
  •  2. Rotary table:Winding machines, filling machines, bottle blowing machines, amusement equipment
  •  3. Cable reel:Port machinery, hoisting and lifting equipment, road and bridge machinery, tower
  •  4.Test equipment:Centrifugal test bench, separator, testing instrument
  •  5. Robot:Packaging equipment, stackers, process control equipment, compression molding machines
  •  6. Exhibition/display equipment:Automobile exhibition stand, revolving door, product exhibition stand, revolving restaurant
  •  7.Medical equipment:Shadowless operating lights, helicopters, radar communication equipment

QQ图片20230322163852

Our Advantage

  1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
  2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
  3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
