Ingiant hollow shaft slip ring aperture 25mm, 3-way 30A, 2-way 10A
|
DHK025F-5 |
|||
|
The main parameters |
|||
|
Number of circuits |
17 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

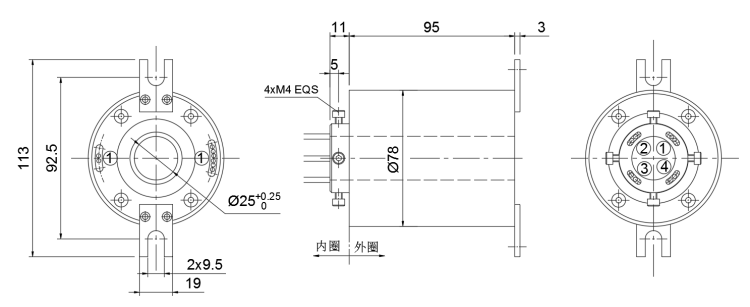

Standard product outline drawing:
Through-Bore Slip Rings
Hollow shaft slip rings for maximum space efficiency where space is limited. Hollow shafts are rotating profiles with an open interior. As an empty tube, hollow shafts are suitable for installation on an axle or for cable feed-through. In addition, hollow shafts with a gas or liquid flowing through them are often found in hydraulic, pneumatic and media lines. To make them rotatable, the industry offers special couplings. These ensure continuous rotation through 360° without the user having to fear leakage. The hollow shaft slip rings are the ideal complement for these special kinetic profiles.
Installation of the hollow shaft slip rings
The installation of the hollow shaft slip rings is very simple. They are pushed to the desired position and fixed there with the clamping screws. If they are to be mounted on a solid profile, it is recommended to drill a threaded hole. This makes the connection form-fitting and particularly durable. A drop of Loctite ensures that the screws cannot come loose even in the case of strong vibrations.
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service: Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
