Ingiant Hollow Shaft Slip Ring Bore 7mm, 58 Ways 3A
|
DHK007-58-3A |
|||
|
|
|||
|
Number of circuits |
58 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

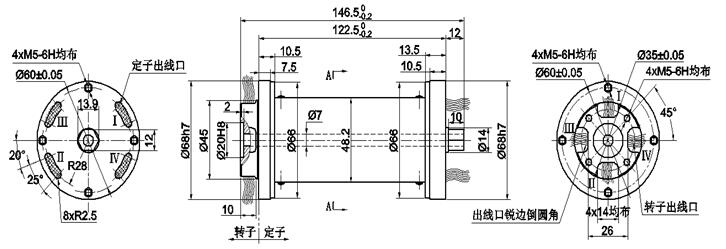

Standard product outline drawing:
Use of the hollow shaft slip rings
The hollow shaft slip rings are particularly well suited to round solid or hollow profiles of all kinds. Pipelines, plug-in axles or journals are typical installation locations for these modules. They can be used for power and data supply in a wide range of applications. Typical uses for hollow shaft slip rings are as follows:
- Rotary switches
- Servo motors
- Positioning valves
- Wheel hub motors
The special advantage of hollow shaft slip rings is their space-saving installation. The slip ring is simply slid onto a component that is installed anyway. Additional auxiliary constructions are not necessary for the installation of these modules.
Our Advantage：
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
- Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
