Ingiant hollow shaft waterproof conductive slip ring 1channels 1A

Short Description:

DHK060 series hollow shaft waterproof conductive slip ring, hole diameter 60mm, outer diameter 130mm, suitable for rotating electromechanical systems with diameter less than 60mm, power ring 1A/ring.

Waterproof conductive slip rings are specially designed for use in wet, corrosive and underwater operating environments. They are also called underwater slip rings and waterproof slip rings. The protection levels are divided into IP65, IP67, and IP68. The liquid components in the working environment, such as fresh water, sea water, oil, etc., should be considered when designing. Waterproof slip rings are widely used in water or humid environments such as ships, oil wells, port machinery and facilities, etc., and can accurately transmit signals and power.


Product Detail

Product Tags

DHK060F-1-1A

The main parameters

Number of circuits

1

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

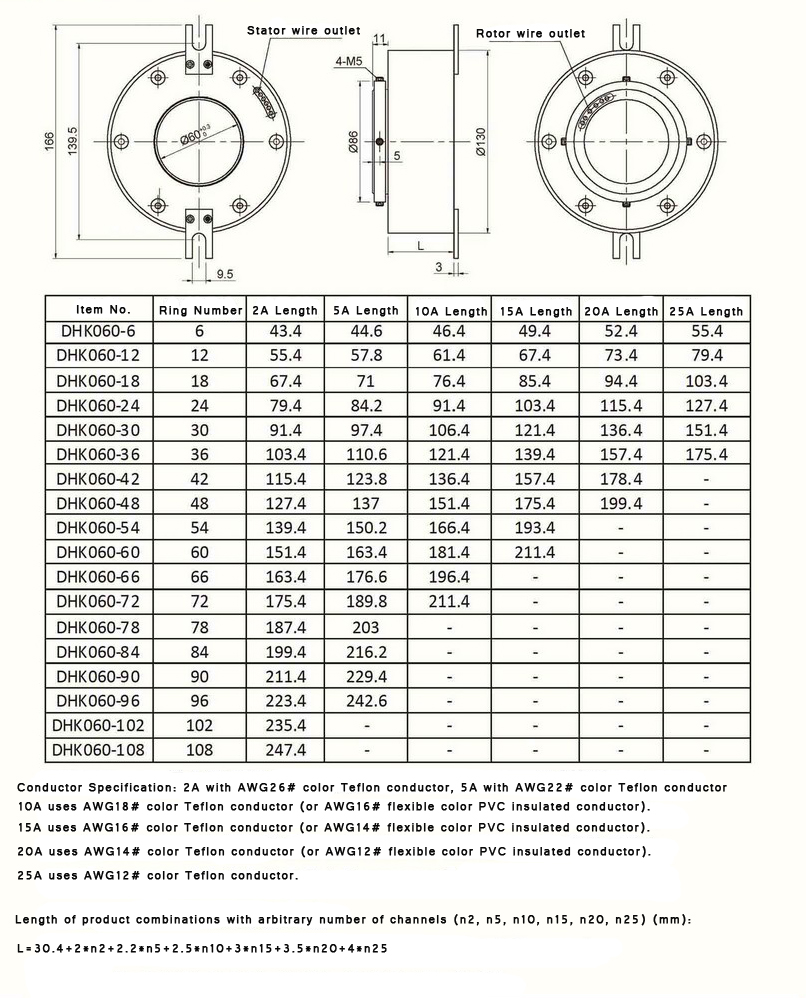

Standard product outline drawing:

DHK060

          DHK060 series hollow shaft waterproof conductive slip ring, hole diameter 60mm, outer diameter 130mm, suitable for rotating electromechanical systems with diameter less than 60mm, power ring 1A/ring.

Waterproof conductive slip rings are specially designed for use in wet, corrosive and underwater operating environments. They are also called underwater slip rings and waterproof slip rings. The protection levels are divided into IP65, IP67, and IP68. The liquid components in the working environment, such as fresh water, sea water, oil, etc., should be considered when designing. Waterproof slip rings are widely used in water or humid environments such as ships, oil wells, port machinery and facilities, etc., and can accurately transmit signals and power.



Features

  • Waterproof and dustproof, IP68 protection level
  • Multi-contact design, long service life
  • Anti-corrosion stainless steel shell
  • Integrated sealing structure design
  • Maximum 1-96 channels of power or signal (0-20A/ring)
  • Easy installation and maintenance-free

QQ图片20230322163852

Our Advantage

  1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
  2. Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
  3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.

QQ截图20230322163935
