Ingiant hybrid hydraulic slip ring combined 45channels 2A electrical and 2channels hydraulic rotary unions

Short Description:

Hydraulic slip ring is a device used to transmit compressed air, cooling water, hydraulic oil, thermal oil and other fluid media between two relatively rotating pipes. It is also called a hydraulic rotary joint. It is currently widely used in hydraulic systems of large machinery and equipment.

Hydraulic slip rings are divided into single channel, double channel and multi-channel according to the number of channels. They can be connected to M5; Different sizes, special slip rings can be customized.


Product Detail

Product Tags

DHS030-45-2A-2Y

The main parameters

Number of circuits

45

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

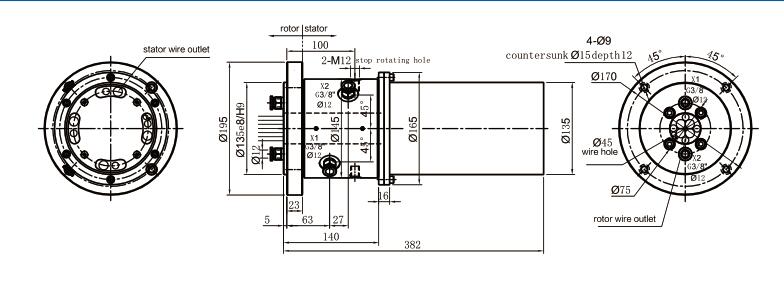

Product drawing:

DHS135-53-2Q

Hydraulic slip ring is a device used to transmit compressed air, cooling water, hydraulic oil, thermal oil and other fluid media between two relatively rotating pipes. It is also called a hydraulic rotary joint. It is currently widely used in hydraulic systems of large machinery and equipment.

Hydraulic slip rings are divided into single channel, double channel and multi-channel according to the number of channels. They can be connected to M5; Different sizes, special slip rings can be customized.

Hydraulic slip rings have the following advantages:

  • It has multiple functions such as transmitting fluid, transmitting torque and rotation signals.
  • It has the advantages of smooth operation, low noise and long service life.
  • Can adapt to harsh working environments such as high temperature and high pressure.
  • The hydraulic slip ring has good sealing performance and is not prone to leakage problems.

Hydraulic slip rings are widely used in metallurgy, aviation, aerospace, petrochemical, electric power, mining, environmental protection and other fields. It is especially widely used in heavy machinery equipment such as excavators, road rollers, and concrete pump trucks. Hydraulic slip rings can also be used in wind turbines, charging piles and other fields.

QQ图片20230322163852

Our advantage:

  1. Product advantage: Transmit analog and digital signal;Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire ;Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
  2. Company advantage:   Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
  3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
