Ingiant Hybrid slip rings waterproof- combined electrical, hydraulic and pneumatic slip ring

Short Description:

Pneumatic liquid slip rings offer their users the following advantages:

  •   High load capacity
  •   Long service life
  •   Easy installation
  •   Reliable, sophisticated design
  •   Compact design
  •   Various applications




Product Detail

Product Tags

DHS200F-79-2Y-1Q

The main parameters

Number of circuits

79

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

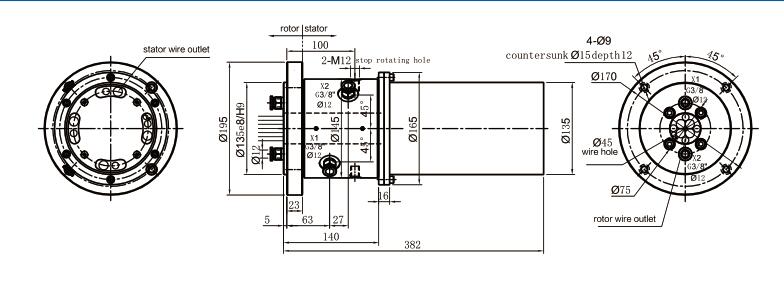

Product drawing:

DHS135-53-2Q

Hybrid pneumatics/liquid + electrics

Hybrid slip rings for simultaneous transmission of media (gas, liquid) and electrics (power, signals)

Pneumatic liquid slip rings belong to the “hybrid slip rings”. They are designed for the passage of more than one form of energy. The pneumatic liquid slip rings are among the most powerful representatives of their class. Their task is to guide any incoming energy form through a rotating union that can be rotated as desired – or vice versa. The return line from a rotating duct into a rigid duct is also possible without any problems. The pneumatic liquid slip rings perform enormously, especially when passing through hydraulic or pneumatic pressures: the components can be pressurised with up to 100 bar. This makes them ideal for particularly demanding applications.

Pneumatic liquid slip rings offer their users the following advantages:

  •   High load capacity
  •   Long service life
  •   Easy installation
  •   Reliable, sophisticated design
  •   Compact design
  •   Various applications

QQ图片20230322163852

Our advantage:



  1. Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
  2. Product advantage: DHK series perforated conductive slip ring is currently the most cost-effective industrial slip ring inside a best-selling series of products, in many cases also known as hollow shaft conductive slip ring, through the hole, through the hole conductive slip ring, hollow shaft slip ring. Mainly used in 360 degrees continuous rotation and need to ensure that the power supply, signal can not be interrupted:
  3. Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
