Ingiant ID 38mm through hole Ethernet slip ring with 1 Gigabit Ethernet channel and 17 channels power/ signal

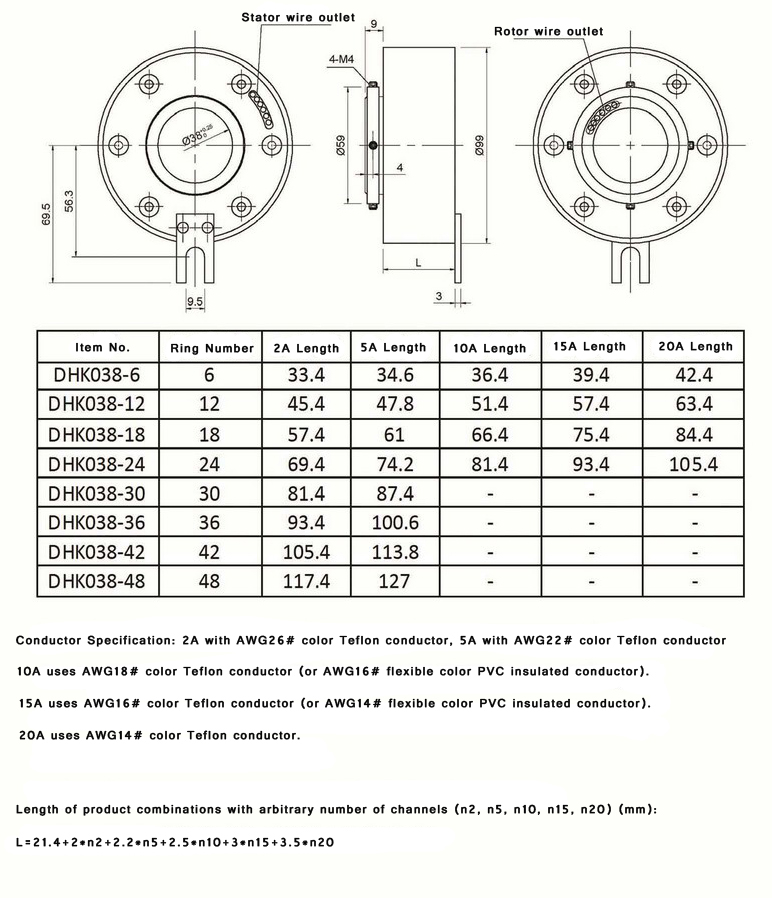

Standard product outline drawing:

Ethernet slip ring – Through hole slip ring ID 38mm series

Accept customization, transmit 100/1000M Ethernet signal

DHK038-26 through hole Ethernet slip ring, inner diameter 38.1mm, outer diameter 99mm. It can be used to install rotating systems with shaft diameter less than ≤38.1mm, and supports up to 12 power channels, 24 signal channels, and 1 Gigabit Ethernet channel. Gigabit Ethernet slip ring has high-speed transmission characteristics and provides up to 1Gbps communication bandwidth. It is mostly used in high-definition video surveillance systems to transmit high-definition video signals for ball cameras and PTZ cameras, providing an effective solution for 360-degree rotating security monitoring.

Product features

• Stable transmission of 1 Gigabit Ethernet signal
• The brush contact part is plated with rare precious metals, which has a long service life
• Plug-and-play RJ45 interface
• Dedicated Ethernet cable
• Small size, easy installation
• Maintenance-free use
• Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Typical applications

• Small network system
• Video surveillance system
• Stage control system
• Industrial automation control
• Various network cables and RJ45 interface transmission

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
