Ingiant industrial bus slip ring out diameter 22mm 22channels transmit current, high-definition video, Ethernet signals

Short Description:

Industrial bus slip ring: DHS022 miniature slip ring series

DHS022-22-003 industrial bus slip ring, outer diameter 22mm, suitable for rotation applications requiring outer diameter ≤ 22mm. Standard models support 1-22 channels to meet different signal (1channel Ethernet signal, 2 channels HD-SDI 1080P) transmission. Industrial bus slip ring is a special slip ring designed and developed for various buses (including CC-LINK, EtherCAT, EnterBUS, CanBUS, ProfiBUS, ProfiNET, DeviceNet, RS422, RS485, PLC), etc. It adopts a special composite plating process to ensure long-term contact reliability, no packet loss, no alarm, and no delay.

Send email to us

Product Detail

Product Tags

DHS022-22-003
The main parameters
Number of circuits	22	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

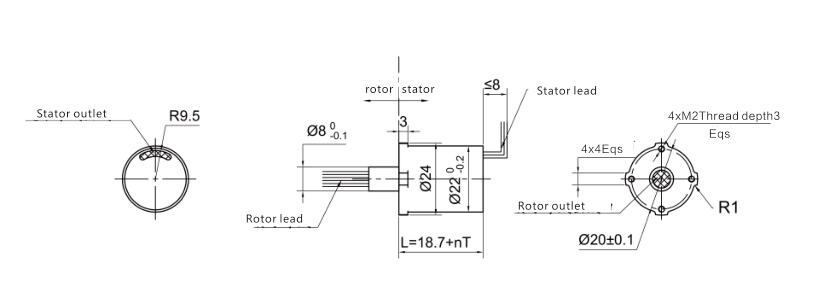

Standard product outline drawing:

Industrial bus slip ring: DHS022 miniature slip ring series

Features:

Multi-contact brushes, long service life
Integrated structure design, easy installation
Support customized requirements
Support high-speed transmission protocol
No packet loss, no crosstalk, patented structure design
Bus types include: RS232/RS485, Inter bus, Device Net, CC-Link, SERCOS interface, Control Net, Field buses, Can open, Profibus, Mod bus, Fipio, USB 2.0 High speed, Fast Ethernet, Certified to 1000-BaseT, HD-SDI 1080P

Typical applications: bus communication between various encoders, servo motors and various controllers in industrial automation control, such as lithium battery equipment, various high-end intelligent equipment, various laser equipment, etc.

Our advantage:

Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
