Ingiant Industrial bus slip ring with aperture 100mm transmits 129 channels of different power and signals
|
DHK100-129 |
|||
|
The main parameters |
|||
|
Number of circuits |
129 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

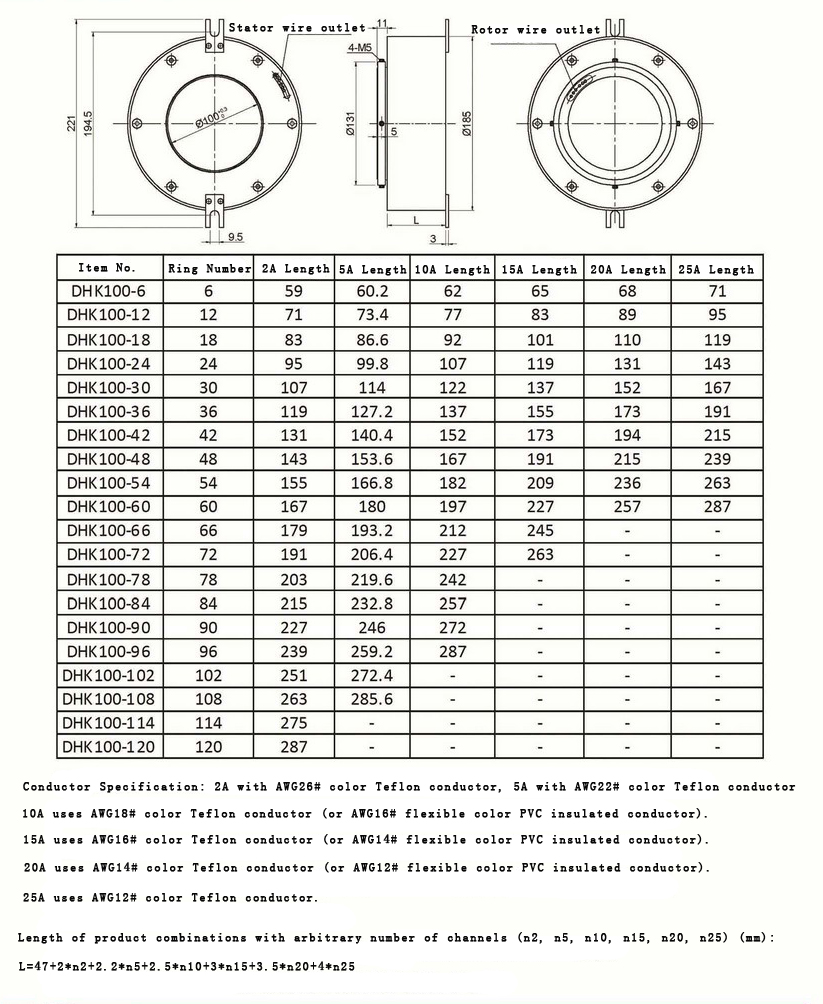

Standard product outline drawing:
Industrial bus slip ring DHK100 series
Industrial bus slip ring DHK100-129 series, inner diameter 100mm, through-hole structure, suitable for rotating applications requiring outer diameter ≤ 100mm. Supports 129 rings to meet different signals (Analog, RS232/RS485, Inter bus, Device Net, CC-Link, SERCOS interface, Control Net, Field buses, Can open, Profibus, Mod bus, Fipio, USB 2.0 High speed, Fast Ethernet , Certified to 1000-BaseT, HD-SDI 1080P) transmission.
Features
- Can transmit current, sensor, control circuit, Ethernet and other signals
- Stable performance, large return loss, small insertion loss, anti-crosstalk
- Unique coating process, long service life
- Optional RJ45 network interface
- Compatible with data communication protocols
- Multi-contact brush, long service life
- Integrated structural design, easy to install
- Support customized needs
- Support high-speed transmission protocol
Mainly used in bus communication between various encoders, servo motors and various controllers in industrial automation control, such as lithium battery equipment, various high-end intelligent equipment, various laser equipment, etc.
Our Advantage
- Product advantage: Can transmit current, sensor, control circuit, Ethernet and other signals,Stable performance, large return loss, small insertion loss, anti-crosstalk,Unique coating process, long service life,Optional RJ45 network interface,Compatible with data communication protocols.
- Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
- Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
