Ingiant Inner diameter 30mm integrated precision through hole slip ring 12 channels 5A

Short Description:

DHK030 hollow shaft series integral precision through hole slip ring



DHK030 series is a 30mm aperture, integral precision through hole slip ring, mainly used for continuous transmission of power and signals under 360° continuous rotation; using advanced fiber brush technology, free maintenance or lubrication; multiple circuits on each circuit Contact points, low contact pressure, low noise, low contact wear; extremely long working life; standardized & modular design; also provide customized solutions;


Product Detail

Product Tags

DHK030-12-5A

The main parameters

Number of circuits 12 Working temperature “-40℃~+65℃”
Rated current 2A.5A.10A.15A.20A Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

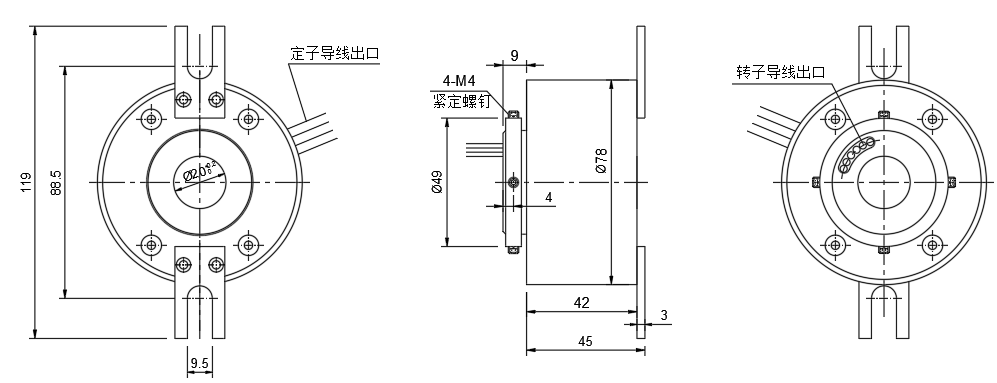

Standard product outline drawing:

DHK020-5-10A



DHK030 hollow shaft series integral precision through hole slip ring

DHK030 series is a 30mm aperture, integral precision through hole slip ring, mainly used for continuous transmission of power and signals under 360° continuous rotation; using advanced fiber brush technology, free maintenance or lubrication; multiple circuits on each circuit Contact points, low contact pressure, low noise, low contact wear; extremely long working life; standardized & modular design; also provide customized solutions;



Typical applications:

Packaging machinery, automated machine tools, coating machines, automatic screw locking machines, carpet stabbing robots, intelligent grinding robots, polishing machines, intelligent warehousing robots, cable reels, stamping machines, centrifuges, warehousing and logistics vehicles, spraying equipment, etc.

QQ图片20230322163852

Our Advantage

  1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
  2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
  3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

QQ截图20230322163935
