Ingiant large hole diameter 242mm through hole Ethernet slip rings combined 2channels 100M Ethernet
|
DHK242-43 |
|||
|
The main parameters |
|||
|
Number of circuits |
43 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

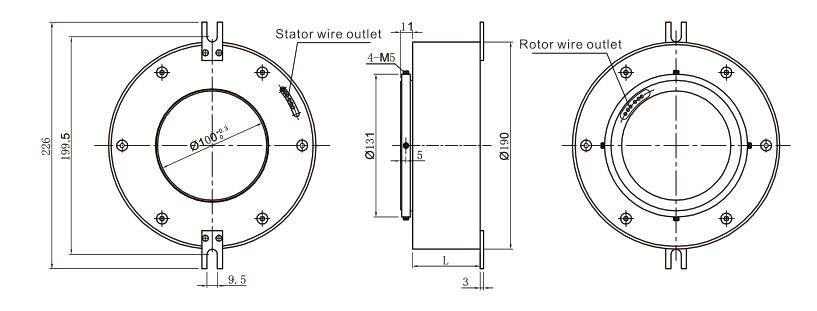

Standard product outline drawing:
DHK242-43 series large hole through hole Ethernet slip rings, inner hole 242mm, outer diameter 318.4mm, combined with 2channels 100M Ethernet slip rings. It is suitable for rotating electromechanical systems with a diameter less than 242mm, and is used to transmit power or signals in 360-degree rotating systems. It can be used in automated industrial control systems, automated electrical transmission systems, intelligent filling robots, etc.
Features
- Multi-contact brush contact design, long service life
- It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
- Integrated structural design, easy to install
- Stable transmission of 2 channels of 100M Ethernet signals
- IP 54 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical applications: medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, wire reels, cable reels, packaging machinery, filling equipment, wind turbines, etc. For applications in new fields such as automated robots, fully automatic inspection equipment, and VR in the era of artificial intelligence and Industry 4.0
Our Advantage
1）Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
2）Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
3）Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
