Ingiant long service life hollow shaft slip rings with hollow shafts 42mm 10A

Short Description:

Hollow shaft slip rings are also called through-hole conductive slip rings, which are mainly used to transmit precision signals, currents, and high voltages; they have low torque, low loss and maintenance-free; low electrical noise, and long life.


Product Detail

Product Tags

DHK042-3-10A

The main parameters

Number of circuits

3

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm



Electrical Slip Ring Parameters

Rings

1-200 (or more)

Current

2A,5A,10A,20A,25A

Rated Voltage

0~600VDC/VAC

Max speed

15000RPM

Housing Material

Aluminum Alloy, engineering plastic, stainless steel, etc

Torque

0.02N.m;+0.01N.m/ 6rings

Working life

>80 million

Contact Material

Precious Material

Electrical Noise

<5mΩ

Contact resistance:

<5mΩ

Dielectric Strength

2500VAC@50Hz

Lead Wire

UL Teflon@Awg22,Awg16

Insulation Resistance

1000 MΩ / 500VDC

Lead Length

300mm (per required)

Working Temperature

-40℃~ 80℃

Protection Grade

IP51 – IP68

Operating Humidity

10% to 95% RH

Material

RoHs

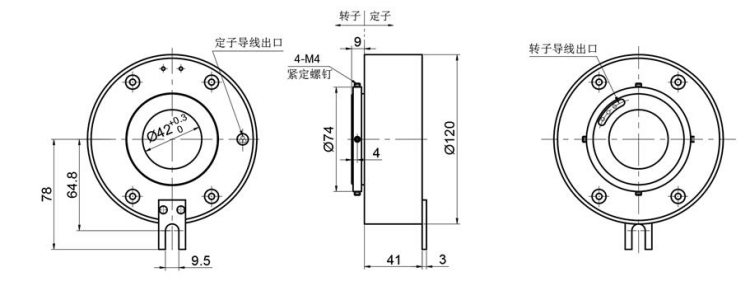

Standard product outline drawing:

DHK042_副本

Hollow shaft slip rings are also called through-hole conductive slip rings, which are mainly used to transmit precision signals, currents, and high voltages; they have low torque, low loss and maintenance-free; low electrical noise, and long life.

Ingiant hollow shaft slip rings are mainly used in:

  • 1. Military equipment
  • 2. Medical equipment, CT
  • 3. Wind power generation equipment
  • 4. Manufacture and control equipment
  • 5. Exhibition/display equipment
  • 6. Robots, robotic arms, radar antennas, VR
  • 7. Magnetic actuator, turntable test sensor
  • 8.Construction machinery, testing equipment, packaging machinery, environmental protection equipment

QQ图片20230322163852

Our Advantage



  1. Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
  2. Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
  3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
