Ingiant maintenance-free automation slip rings diameter 78mm 4 channels
|
DHS078F-4-002 |
|||
|
The main parameters |
|||
|
Number of circuits |
4 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

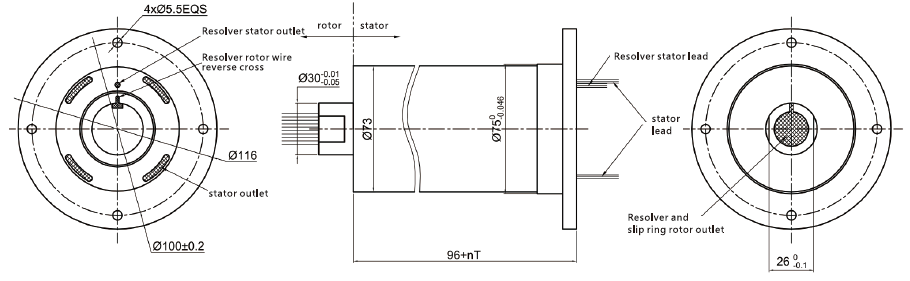

Product drawing:
Advantages of Automation slip rings
The standard version of the aluminium housing is designed for protection class IP51. This means that it provides complete protection against accidental contact and lasting encapsulation against dust penetration. Depending on requirements, Automation slip rings can be manufactured with different degrees of protection. Give us a call. Together we will clarify which protection class is best suited for your Automation slip rings. Automation slip rings offer you the following advantages:
- Shielding against interfering signals
- Impact-resistant housing
- acid-resistant housing material
- Corrosion-resistant enclosure
- Minimum internal wear and tear
- Very reliable signal transmission
- Long-life ball bearings
The use of a metallic housing is ideal for shielding any interfering signals and ensuring that the signals are transmitted unaffected.
From a protection class of IP51, this offers sufficient protection against moisture and penetrating dust. This reliably prevents the formation of insulating dust layers on the slip rings. The gold or silver contacts are largely insensitive to corrosion. However, since contamination of the contact surfaces always has a negative effect on the transmission quality, a suitable protection class is selected depending on the application. Even in the simplest version, Automation slip rings provide reliable protection against these interference variables.
The housing is made of thick-walled aluminium. Vibrations and slight knocks hardly affect it. The housing is sufficiently thick-walled to allow light machining, such as engraving. Aluminium is corrosion-resistant and resistant to most acids and alkalis.
The slip ring technology enables reliable, continuous 360° rotation even at high rotation speeds. This makes the Automation slip rings for particularly demanding applications, in various applications without any problems
Our advantage:
- Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
- Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
