Ingiant Micro slip ring out diameter 17mm with 1channel HD-SDI signal (Coaxial radio frequency)
|
DHS017-20-002 |
|||
|
The main parameters |
|||
|
Number of circuits |
20 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

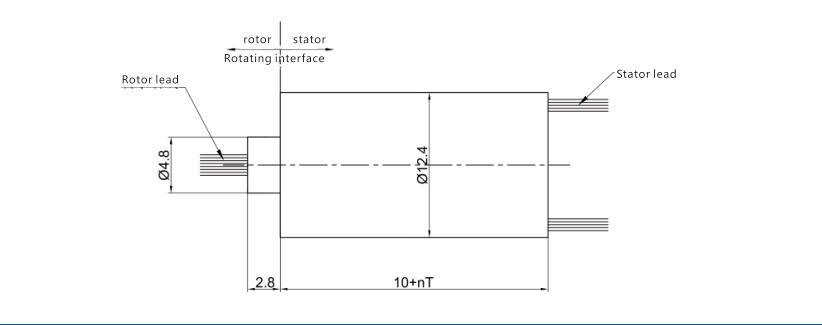

Standard product outline drawing:
Micro slip ring – OD 17mm
DHS017-20-002 Micro slip ring, OD 17mm, overall length 36mm, 20 channels. The precious metal brush wire and gold-to-gold contact technology are used, and through precision assembly, extremely low dynamic resistance fluctuation and rotational torque are achieved. Mainly used for transmitting weak control signals and weak currents of small and medium-sized systems, such as video, control, sensing, power supply, and Ethernet. It has low torque, low loss, maintenance-free, and low electrical noise.
Product features
- Low torque, less than 0.06N.m
- Smooth and reliable operation
- Low electrical noise
- Easy installation
- Long service life
- Ultra-micro structure design
- Suitable for weak current/signal transmission
- Supports combination design of digital signal, analog signal, Ethernet signal, etc.
Typical applications: security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
