Ingiant miniature slip ring 18mm 30 channels 0.8A current for high-speed ball cameras

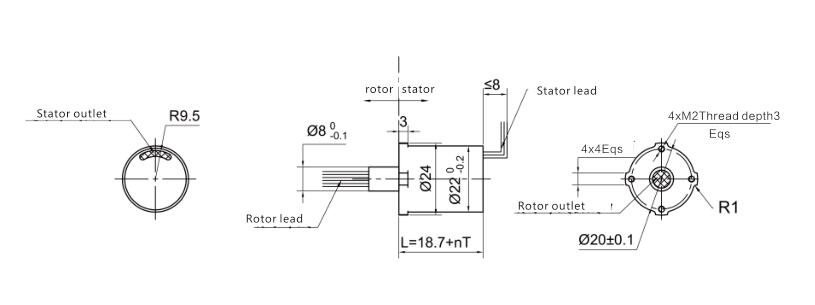

Standard product outline drawing:

Miniature Slip Ring – DHS018 Series

Support customization, standard outer diameter 6.5-20.5mm

DHS018-30 miniature slip ring, outer diameter 18mm, 30 channels 0.8A. Mainly used to transmit weak current and control signals. This series adopts precious metal brush wire, conductive ring V-groove processing, gold-on-gold contact process, and precision assembly to achieve extremely low dynamic resistance fluctuation and rotation torque. Miniature slip rings have the characteristics of low electrical noise, low transmission loss, and low torque.

Product features

• 18mm outer diameter compact structure, overall length 41mm
• Low torque, less than 0.06N.m
• Smooth and reliable operation
• Low electrical noise
• Easy installation
• Long service life
• Ultra-miniature structural design
• Suitable for weak current/signal transmission
• Supports combination solution design of digital signals, analog signals, Ethernet signals, etc.

Typical applications: high-speed ball cameras, toys, stage lighting, shadowless lights, security monitoring, drones, stabilizers, PTZ heads etc.

Our advantage:

1. Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
2. Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
3. Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
