Ingiant Miniature slip ring out diameter 16mm 22 channels electric signal for security surveillance

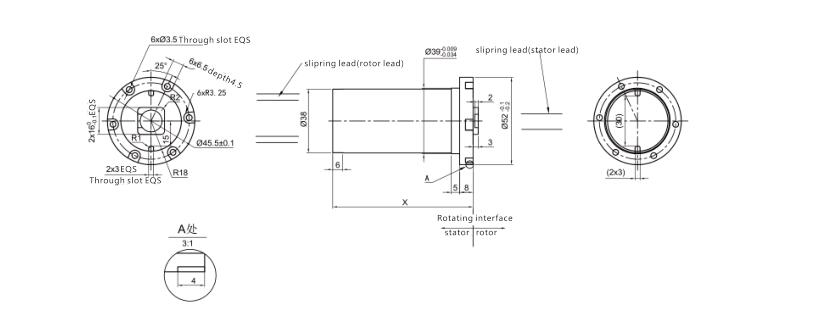

Standard product outline drawing:

Miniature Slip Ring – DHS016 Series

Support customization, standard outer diameter 6.5-20.5mm

DHS016-16 miniature slip ring, outer diameter 16mm, 3channels 5A ,4 channels 2A, 15 channels 1A. Gold-on-gold contact material ensures low contact resistance, low torque, reliable performance and long service life. Mainly used for transmitting weak currents and control signals. This series adopts orecious metal brush wire, and gold to gold contact technology. Through precision assembly, it achieves extremely low dynamic resistance fluctuations and rotational torque.

Ingiant technology supplies miniature slip rings with low electrical noise, low loss, and low torque. Suitable for speed dome cameras, toys, stage lights, drones, and shadowless lamps. The company has micro slip rings to achieve high current, speed, and small space requirements for rotary.

Feature

• Compact design with OD16mm
• Low torque, less than 0.06N.m
• Operating smoothly and reliability
• Extremely low electrical noise
• Convenient to assembly
• Micro design, accept custom
• Support to mix transmission of digital signals, analog signals, Ethernet signals, power, etc.

Typical applications: UAVs, camera stabilizers, models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro cloud heads, small measuring instruments, electrical test equipment, rotary tables, medical equipment, robots, exhibition/advertising equipment, manufacturing and processing control equipment, small winding machines, radar antennas, etc.

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure, our products Performance and indicators are always at the forefront of similar products in the world.
2. Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
