Ingiant Non standard customized hybrid slip ring combination optoelectronic liquid signal

Short Description:

DHS165-6-1F-2S-2Y hybrid slip ring, combined with 6 electrical channels, 1 fiber optic channel, 2 signal channels, and 2 liquid channels. The optoelectronic liquid hybrid slip ring uses pneumatic, hydraulic, and optical transmission methods to transmit gas, liquid, and light signals to the rotating part.

Hybrid slip ring combination of gas, liquid, and fiber optic is equipped with transmission channels for gas, liquid, and optical fibers inside the sliding ring to achieve transmission of different media. Due to the unique characteristics of gas, liquid, and optical fiber transmission, the combination of gas, liquid, and optical sliding rings can achieve a wider range of application scenarios.

Send email to us

Product Detail

Product Tags

DHS165-6-1F-2S-2Y
The main parameters
Number of circuits	6	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

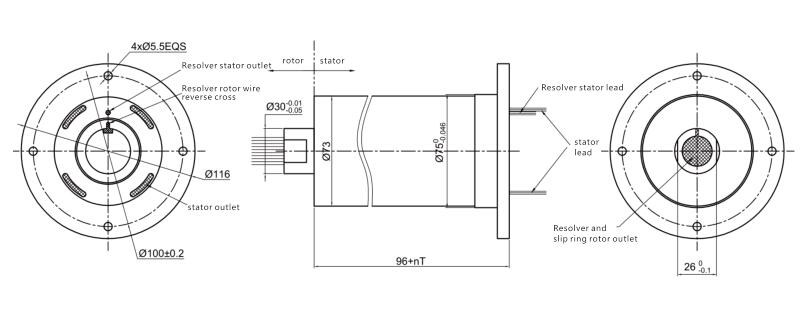

Product drawing:

Our advantage:

Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
