Ingiant Non-standard customized military-grade optoelectronic slip ring 40 channels electrical combination one channel optical fiber

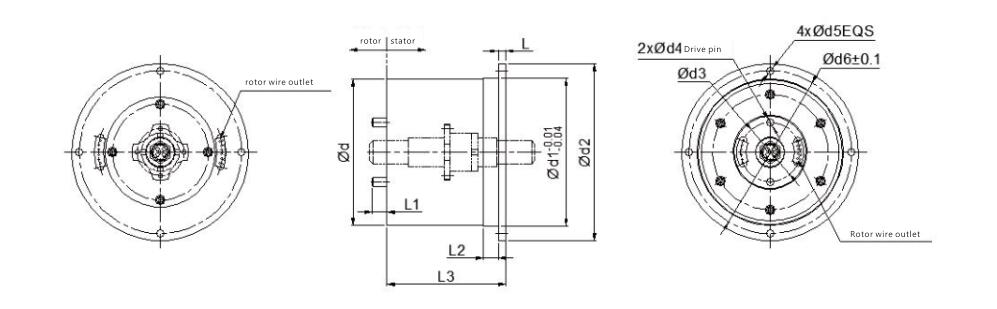

Product drawing:

DHS058-40-1F optoelectronic slip ring :Military grade standard, solid shaft ,diameter 58mm,1 channel fiber optic combined with 40 channels power. Transmits ordinary electrical signals and optical signals. The optical signal transmission rate can reach more than 100Gbit/s. Single-mode, multi-mode or mixed single-mode and multi-mode options are available.

Optoelectronic slip rings, also known as optoelectronic combined slip rings (combination of fiber optic slip rings and conductive slip rings), are rotating connection devices that can rotate continuously at 360° without restriction and transmit current, telecommunications data, light energy, and optical signals at the same time. Optoelectronic slip rings It is especially suitable for high-speed signal, large information capacity, high precision, and long-distance transmission.

Optoelectronic slip ring application:

• 1. Industrial machines: drilling platforms, winding machines, end-face processing machines, hot rolling machines
• 2. Rotary workbench: winding machine, filling machine, bottle blowing machine, amusement equipment
• 3. Cable reel: port machinery, hoisting and lifting equipment, road and bridge machinery, tower
• 4. Test equipment: centrifugal test bench, separator, testing instrument
• 5. Robots: packaging equipment, stackers, process control equipment, molding machines
• 6. Exhibition/display equipment: car booths, revolving doors, product booths, revolving restaurants
• 7. Medical equipment: shadowless surgical lights, helicopters, radar communication equipment

Our advantage:

1. Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
2. Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
