Ingiant non-standard customized photoelectric-hydraulic combination slip ring

Short Description:

Special customized photoelectric-hydraulic combination slip ring

Diameter 150mm, 71 electrical channels, 8 optical fiber channels, 2 hydraulic channels

Special customized combination slip rings need to be customized according to customer requirements. They are usually products with relatively complex structures and high technical content. They are mostly used in military equipment and large-scale mechanical equipment.

Send email to us

Product Detail

Product Tags

DHS150-71-8F-2Y
The main parameters
Number of circuits	150	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

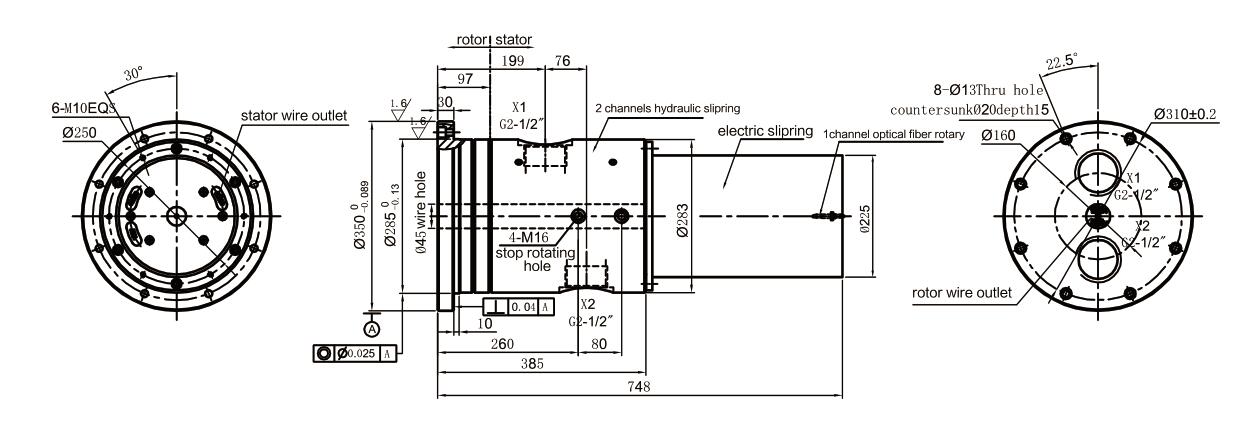

Standard product outline drawing:

Special customized photoelectric-hydraulic combination slip ring

Diameter 150mm, 71 electrical channels, 8 optical fiber channels, 2 hydraulic channels

Equipment is developing towards more complexity, higher precision, and more functions, and industrial needs are no longer just the transmission of electrical signals.

INGIANT Technology can provide a combination of fiber optic signals, hydraulic pressure, pneumatic pressure, encoders, etc. and electric slip rings. These components can be installed in the hole of the slip ring or at the end of the slip ring, transmitting signals and energy through the center hole of the slip ring. Slip rings can also be embedded into these components to reduce the difficulty of customer use, improve system performance, and make automation easier.

Our advantage:

Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
