Ingiant optoelectronic slip ring diameter 55mm 45 channel combination of two optical fibers

Short Description:

Optoelectronic slip rings are optoelectronic combined slip rings that innovatively combine optical fiber slip rings and electric slip rings. They can not only transmit large-capacity data, but also transmit electrical power, medium and low-frequency electrical signals, etc., to meet the requirements of electromechanical systems.

INGIANT Technology’s optoelectronic Slip Ring combines fiber optic slip rings and electric slip rings through an optimized structure, which can ensure that the fiber optic slip rings and electric slip rings rotate synchronously, and the structure is reliable and stable.

Send email to us

Product Detail

Product Tags

DHS055-45-2F-002
The main parameters
Number of circuits	45	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

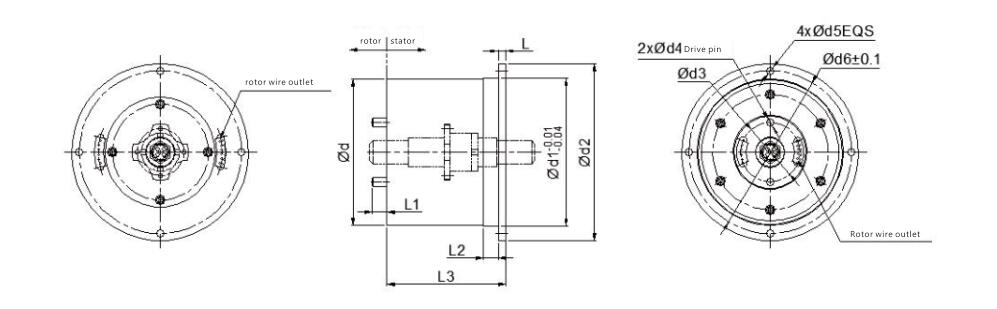

Standard product outline drawing:

Our advantage:

Product advantage: Low unit price,Large constructive design possibilities,High reliability,Low weight,Low installation space,easy installation, the hybrid design is space-saving.
Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customised advantage: If you are not sure which products are ideal for your challenges, please contact us. These components are extremely flexible and versatile, so use our technical advice to project the optimum slip ring body for your application. Our service team will deal with your request immediately and get back to you as soon as possible.
