Ingiant Optoelectronic slip ring OD 66mm with 1 single mode optical fiber and 39 electrical channels

Short Description:

Optoelectronic Slip Ring / Optoelectronic Rotary Joint

OD 66mm 1 channel single-mode optical fiber,accept customization

DHS066-39-1F Optoelectronic slip ring: Optoelectronic rotary joint, single-channel optical fiber slip ring, transmits 1 optical fiber and 39 electrical channels. The electrical channel supports signal (1A), 3A, 8A, 10A, power supply voltage 0~120VDC, signal 0~28VDC. It supports single-mode and multi-mode, uses optical fiber as the data transmission carrier, is suitable for harsh environments, and solves the rotation transmission problem for optical series and optoelectronic systems.

Send email to us

Product Detail

Product Tags

DHS066-39-1F
The main parameters
Number of circuits	39	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Fiber optic slip ring parameters:

Number of channels:	2	Typical insertion loss (23℃):	＜4dB
Working wavelength:	1270~1610mm	Insertion loss fluctuation:	＜2dB
Fiber type:	single-mode fiber	Return loss：	＞40dB
Connector type:	FC/PC	Pigtail package:	∅2 armored
Transmission direction:	bidirectional	Rate:	≥10Gbps

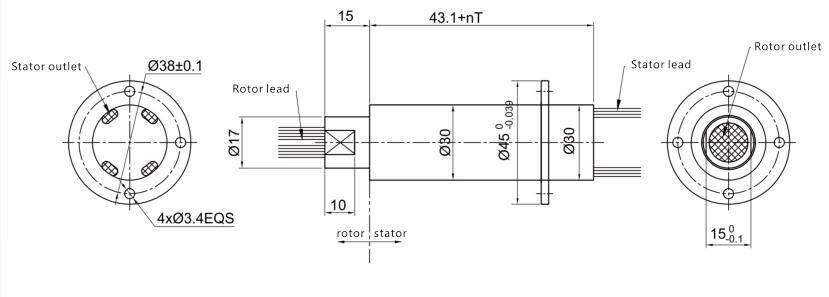

Standard product outline drawing:

Optoelectronic Slip Ring / Optoelectronic Rotary Joint

OD 66mm 1 channel single-mode optical fiber,accept customization

Product features

Large data transmission capacity, high transmission rate
Suitable for long-distance transmission
No packet loss, no electromagnetic interference
Compact design, light weight
Applicable to harsh environments
Ultra-long service life

Typical applications:

High-end robots, high-end material conveying systems, rotating turrets on vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;

Our advantage:

Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
