Ingiant optoelectronic slip ring with 2 channels fiber optic,gigabit network and video signal
|
DHS105-50-2F |
|||
|
The main parameters |
|||
|
Number of circuits |
50 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
Fiber optic slip ring parameters:
| Number of channels: | 2 |
| Working wavelength: | 1310nm-1550nm； |
| Fiber type: | single-mode fiber; |
| Connector type: | FC； |
| Insertion loss: | ＜3.5dB； |
| Insertion loss variation: | ≤±1dB； |
| Pigtail length (excluding connector) | Rotor end: 2000mm~2050mm;
Stator end:Equipped with length 1000mm～1050mm Armored jumper with FC connectors at both ends; |

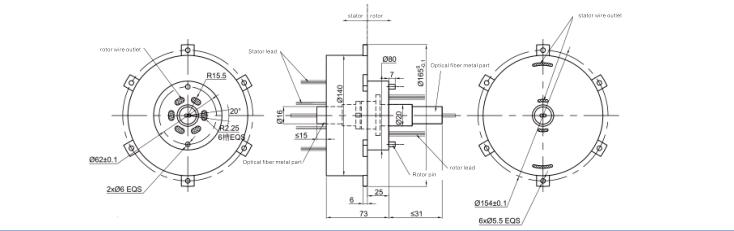

Standard product outline drawing:
DHS105-50-2F optoelectronic slip ring has an outer diameter of 105mm, combines 2 channels of single-mode optical fiber and multiple signals (1 channel of Gigabit Ethernet, 2 groups of PAL video, etc.), uses optical fiber as a data transmission carrier, is suitable for harsh environments, has a service life of up to 100 million revolutions, and solves the rotation transmission problem for optical series and optoelectronic systems.
Product features
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Extremely long service life
Typical applications:
High-end robots, high-end material conveying systems, rotating turrets, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
