Ingiant photoelectric combination rotary joint 51channels combination single-channel optical fiber slip ring

Short Description:

DHS045-51-1F single-channel optical fiber slip ring, photoelectric combination rotary joint, capable of transmitting 1 optical fiber and 1 to 72 electrical channels at the same time, an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 20A, voltage 600VAC/VDC. Optoelectronic rotary joints, also known as optoelectronic slip rings, use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. Damage to fiber optics. It can be used with traditional electronic bus rings to create photoelectric hybrid bus rings to transmit power and high-speed data.


Product Detail

Product Tags

DHS045-51-1F

The main parameters

Number of circuits

51

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

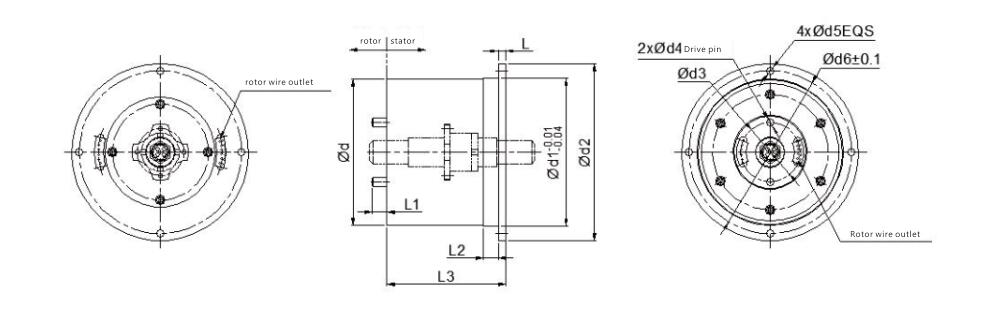

Standard product outline drawing:

DHS100-18-4F

DHS045-51-1F single-channel optical fiber slip ring, photoelectric combination rotary joint, capable of transmitting 1 optical fiber and 1 to 72 electrical channels at the same time, an integral precision conductive slip ring with an all-aluminum alloy structure. The electrical path supports signal (2A), 10A, 20A, voltage 600VAC/VDC. Optoelectronic rotary joints, also known as optoelectronic slip rings, use optical fibers as data transmission media, providing the best technical solution for data transmission between rotatingly connected system components. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. Damage to fiber optics. It can be used with traditional electronic bus rings to create photoelectric hybrid bus rings to transmit power and high-speed data.

Typical application:

Optoelectronic slip rings are currently the most technically difficult series of industrial slip rings. They are mainly used in situations where 360-degree continuous rotation requires guaranteed power and uninterrupted fiber optic signals: such as high-end robots, high-end material conveying systems, and military vehicles. Transmission and control of high-speed video, digital, and analog signals for rotating turrets, remote control systems, radar antennas, fiber optic sensing and other turntables (speed platforms), medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency Lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;

QQ图片20230322163852

Our advantage:

  1. Product advantage: Transmit analog and digital signal;Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire ;Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
  2. INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
  3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.

QQ截图20230322163935
