Ingiant Photoelectric Combination Slip Ring 60mm with 5 channels fiber optic and 56 electrical channels
|
DHS060-56-5F |
|||
|
The main parameters |
|||
|
Number of circuits |
56 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

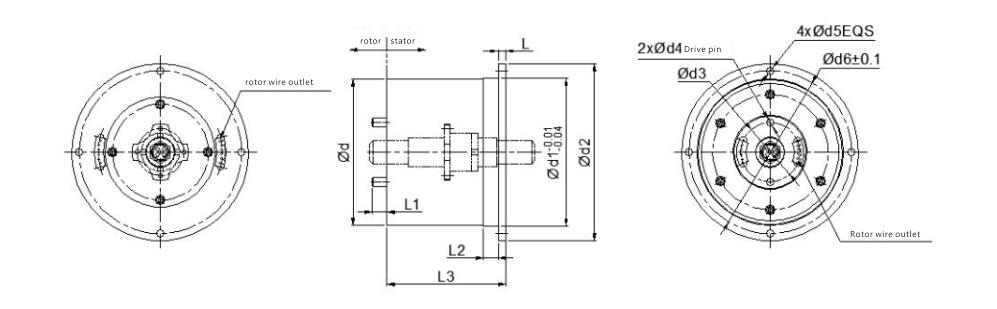

Standard product outline drawing:
Photoelectric combination slip ring | Photoelectric rotary joint
DHS060-56-5F Photoelectric Combination Slip Ring | Photoelectric Rotary Joint, can transmit 5 optical fiber channels and 56 electrical channels at the same time, an integral precision conductive slip ring with full aluminum alloy structure. The electrical channels support signals (2A), 10A, 50A, and voltage 600VAC/VDC. Supports single mode and multi-mode, uses optical fiber as a data transmission carrier, is suitable for harsh environments, and solves the problem of rotation transmission for optical series and optoelectronic systems
Product features
- Large data transmission capacity, high transmission rate
- Suitable for long-distance transmission
- No packet loss, no electromagnetic interference
- Compact design, light weight
- Applicable to harsh environments
- Ultra-long service life
Typical applications:
High-end robots, high-end material conveying systems, rotating turrets on vehicles, remote control systems, radar antennas, fiber optic sensors and other turntables (rate tables) for high-speed video, digital, and analog signal transmission and control, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, etc.;
