Ingiant Photoelectric slip ring combination 25-channel 2A electrical slip ring and 1-channel fiber optic slip ring

Short Description:

Photoelectric slip ring, 1 fiber optical (supports single-mode/multi-mode) + 25channels 2A electrical slip rings, can transmit data losslessly during 360-degree unlimited rotation. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. damage to fiber optics.


Product Detail

Product Tags

DHS030-25-2A-1F

The main parameters

Number of circuits

25

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

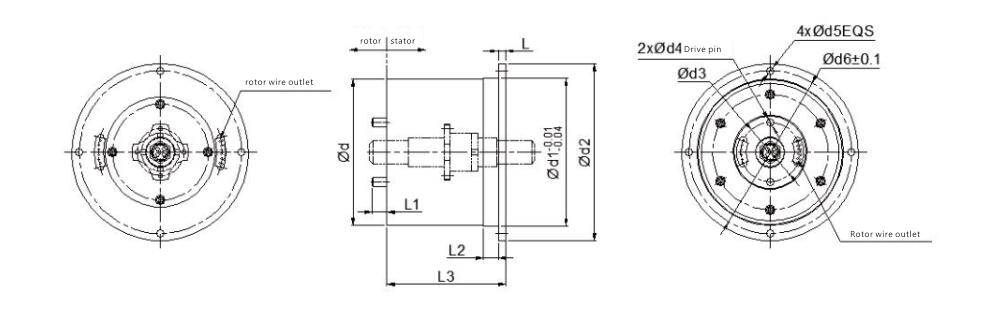

Product drawing:

DHS100-18-4F

Photoelectric slip ring, 1 fiber optical (supports single-mode/multi-mode) + 25channels 2A electrical slip rings, can transmit data losslessly during 360-degree unlimited rotation. It is particularly suitable for applications that require unlimited, continuous or intermittent rotation, and at the same time need to transmit large-capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and avoid collisions due to the rotation of movable joints. damage to fiber optics.

Features

  • Large data transmission capacity and high transmission rate
  • Suitable for long distance transmission
  • No packet loss, no electromagnetic interference
  • Compact design and light weight
  • Suitable for harsh environments
  • Extra long service life

QQ图片20230322163852



Our advantage:

  1. Product advantage: Transmit analog and digital signal;Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire ;Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
  2. Company advantage:   Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
  3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.

QQ截图20230322163935
