Ingiant Pneumatic and electric hybrid slip ring 45mm combination 9-channel electric and 2-channel gas

Short Description:

Hybrid slip ring pneumatics + electrics

Hybrid slip rings for simultaneous transmission of media (gas) and electrics (power, signals)

Pneumatic and electric hybrid slip ring is an electro-pneumatic rotation specially developed for certain devices that require 360° rotation to conduct electricity and simultaneously pass gas (vacuum, compressed air and other gases) and signals (Ethernet, USB, high-definition video, motors and various control signals) Connector product series. It can be used in various high-tech automation equipment that require mixed transmission of gas and electricity, especially in some harsh environments such as humidity and sea water. This gas-electric hybrid conductive slip ring can be used.

Send email to us

Product Detail

Product Tags

DHS045-9-2Q-002
The main parameters
Number of circuits	9	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

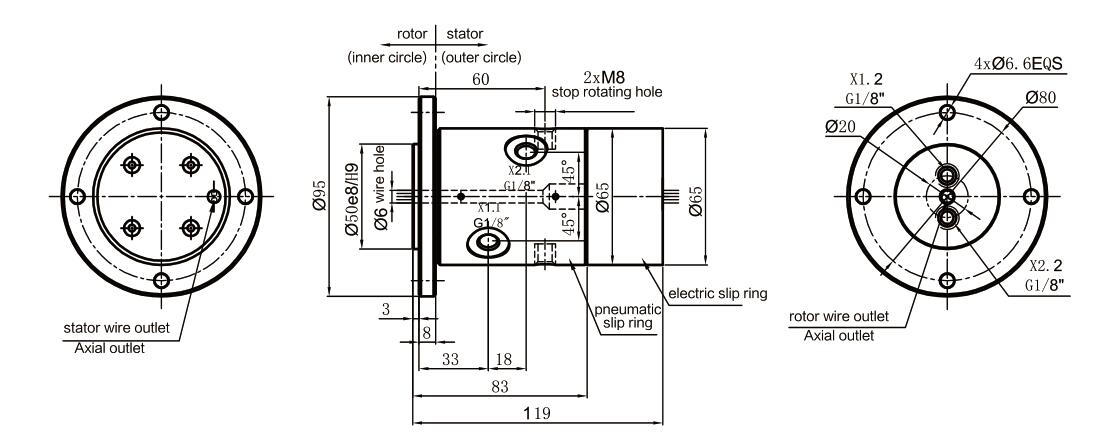

Product drawing:

Hybrid slip ring pneumatics + electrics

Hybrid slip rings for simultaneous transmission of media (gas) and electrics (power, signals)

Pneumatic and electric hybrid slip ring offer their users the following advantages:

High load capacity
Long service life
Easy installation
Reliable, sophisticated design
Compact design
Various applications

Our advantage:

1）Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.

2）INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.

3）Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
