Ingiant Radio Frequency High Speed Rotary Joint

Short Description:


Product Detail

Product Tags

Product Description

High frequency/microwave coaxial rotary joint is used in the 360°continuous rotation devices to transfer DC~56GHz high frequency signals. Apply for satellite antenna, vehicle, radar, microwave antenna test bench etc. It can be make to single-channel or multi-channels high frequency for transmission signal and datas, also support 1~2 channel DC~50GHz RF signals, communications, combine with power or other types of signal of slip ring is available, gas/liquid mixing transmission medium.

Feature

Specially designed for radio frequency signal transmission, the highest frequency can reach 40GHz
Coaxial contact design makes the connector have an ultra-wide bandwidth and no cut-off frequency
Multi-contact structure, effectively reducing relative jitter
The overall size is small, the connector is plugged and used, and it is easy to install

Can Be Customized Specifications

Rated current and voltage
Rated rotating speed
Operating temperature
Number of Channels
Housing material and color
Dimensions
Dedicated wire
Wire exit direction
Wire length
Terminal type

Typical Applications

Suitable for military and civilian vehicles, radar, microwave wireless rotating platforms

Main parameters

Channels Can be customized
Working frequency DC~can be customized
Working temperature -40°C~+70°C or others
Maximum rotating speed 0~200rpm or higher
Insertion loss <1dB (There will be gaps in data in different frequency bands)
Insertion loss variation <0.5dB (There will be gaps in data of different frequency bands)
Standing wave ratio 1.2 (There will be gaps in data of different frequency bands)
Standing wave change 0.2 (There will be gaps in data of different frequency bands)
Structure material Aluminum alloy

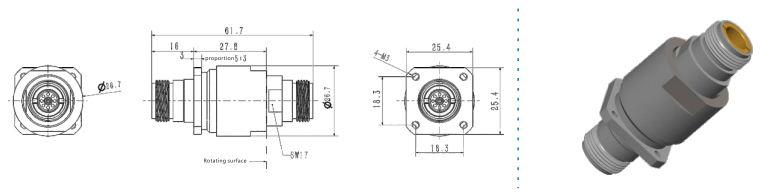

HS-1RJ-001

product-description1

Technical parameters

Channels Channel 1
Interface type Type-N
Frequency range DC~8GHz
Average power 200W
Maximum standing wave ratio 1.3
Standing wave ratio fluctuation value 0.05
Insertion loss 0.4dB
Insertion loss variation 0.5dB
Isolation 50dB

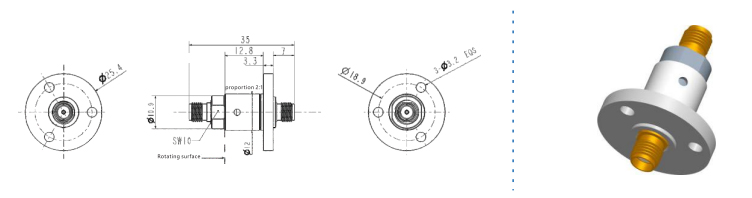

HS-1RJ-002

product-description2

Technical parameters

Channels Channel 1
Interface type SMA-f(50Ω)
Frequency range DC~18GHz
Average power 200W@1G  100W@8G  30W@18G
Maximum standing wave ratio 1.4
Standing wave ratio fluctuation value 0.1
Insertion loss 0.6dB
Insertion loss variation 0.1dB
Isolation 50dB
product-description3
product-description4
