Ingiant RF conductive slip ring combination 2 channels RF + 11channels power signal

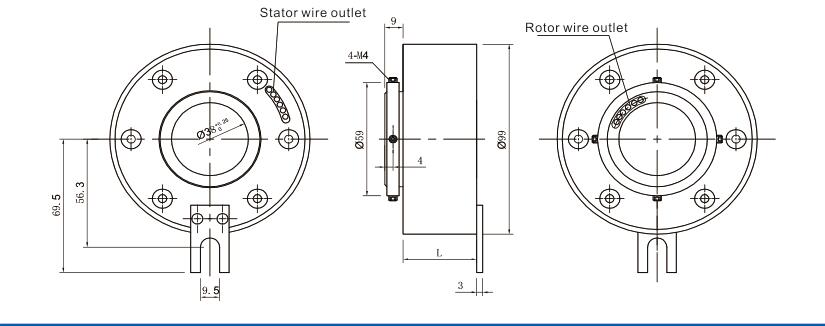

Standard product outline drawing:

RF conductive slip rings are also called high-frequency conductive slip rings. They are generally divided into single-channel RF slip rings, dual-channel RF slip rings, and multi-channel RF slip rings according to RF channels. They can transmit high-frequency signals and RF signals in 360° rotation. , microwave signals, analog signals, digital signals, etc., can also be combined with electrical signals, control signals, communication signals, power supplies, and fluid media for transmission.

Features of 2-channel radio frequency + 11-channel power signal combination vehicle radar slip ring:

•   Industrial grade -40℃～+85℃ temperature range;
•   Automated production of key nodes, with extremely high reliability and consistency;
•   Compact structure design, smooth operation and low torque;
•   The surface of the ring is very smooth, with a surface roughness of <0.5μm, which avoids the phenomenon of brush filament flashing and early powder accumulation;
•   Low electrical noise, no electromagnetic interference, low loss, military-grade service life up to 20 million revolutions @350RPM;
•   Using wear-resistant and corrosion-resistant three-level super-hard gold technology, the hardness, strength, wear resistance and conductivity are better than the international military standards for connector contacts;
•   Mainly used in rotating transmission of power, signals, radio frequency signals, etc. in intelligent industry, satellite radar, communication on the move, and radar antennas.

Transmission signal:

A variety of media combination transmissions can be integrated.

Our Advantage

1.        Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
