Ingiant RF high frequency rotary joint 2-Channel RF Rotary Joint with 41channels power diameter 160mm

Short Description:

The high frequency rotary joint transformer is used in constant rotating equipment. It transmits high frequency signals and high speed signals from stationary part to rotating part. This rotary joint is capable of transmitting analog signals and high-speed digital signals with frequencies of 500MHz-50GHz. It is compact in structure, stable in performance with good shielding effect and low interference. Besides, the high frequency slip ring can be easily installed in other applications. This series consists of a high frequency slip ring and a high frequency hybrid electric slip ring


Product Detail

Product Tags

DHS160-41-2S

The main parameters

Number of circuits

41

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

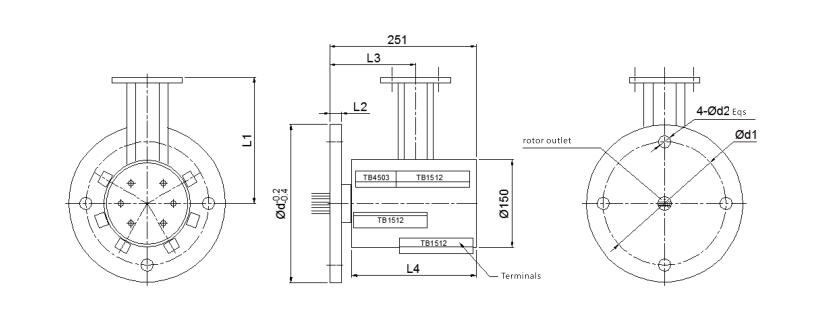

Product drawing:

DHS150-73

The high frequency rotary joint transformer is used in constant rotating equipment. It transmits high frequency signals and high speed signals from stationary part to rotating part. This rotary joint is capable of transmitting analog signals and high-speed digital signals with frequencies of 500MHz-50GHz. It is compact in structure, stable in performance with good shielding effect and low interference. Besides, the high frequency slip ring can be easily installed in other applications. This series consists of a high frequency slip ring and a high frequency hybrid electric slip ring

Features:

  • Up to 4 circuits (model with more circuits is customizable).
  • Frequency up to 50GHz
  • Compact design with low interference
  • Transmit multiple signals simultaneously
  • Very low insertion loss and transmission fluctuations
  • Durable and maintenance-free

Applications:

  • Radar antenna, military system equipment.
  • HD network video surveillance system
  • Satellite communication system
  • Medical treatment device
  • Air traffic control and missile defense system
