Ingiant RF hybrid slip rings combine 72channels electrical/ signal and 1 RF slip ring

Short Description:

RF hybrid slip rings are specially developed for transmitting high-speed serial digital signals or analog signals such as high-definition signals, RF signals, and microwave signals. This series of products supports the independent transmission of single-channel or multi-channel high-frequency signals, and also supports the mixed transmission of high-frequency signals, control signals, communication signals, power supply and fluid media, that is, hybrid slip rings.


Product Detail

Product Tags

DHS037-72-1S

The main parameters

Number of circuits

72

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

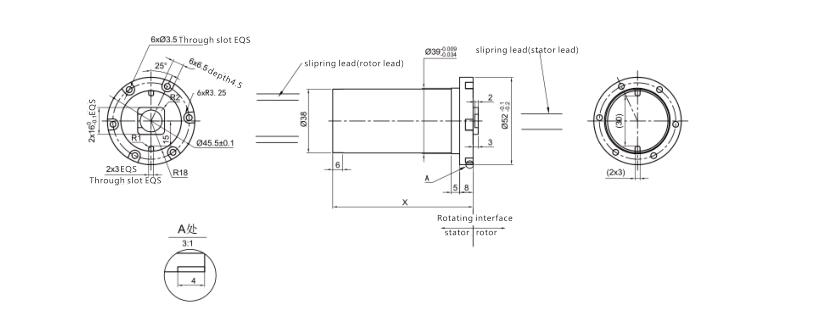

Product drawing:

DHS039-23-004

RF hybrid slip rings are specially developed for transmitting high-speed serial digital signals or analog signals such as high-definition signals, RF signals, and microwave signals. This series of products supports the independent transmission of single-channel or multi-channel high-frequency signals, and also supports the mixed transmission of high-frequency signals, control signals, communication signals, power supply and fluid media, that is, hybrid slip rings.



Advantage:

  • Small size and compact structure
  • High speed and high frequency transmission
  • Support mixed media transmission
  • Transmission without delay



Typical applications: air traffic control radar, radar antenna, rotating battery, military radar system, airborne mobile communications, high-definition network video surveillance system, etc.
